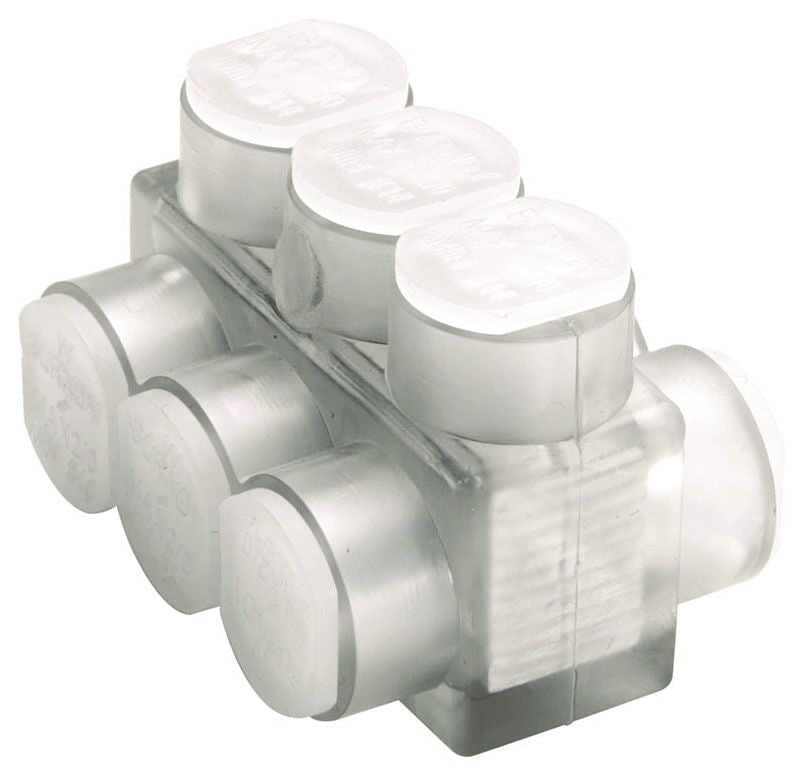

Tap connections and in-line splice/reductions are made quickly and easily with the UNITAP line of clear insulated connectors for code conductor. UL486B Listed. Dual-rated AL9CU for any stranded copper or stranded aluminum applications. 600 Volt, 90° C. Featuring multiple configurations suitable for most any application.

Specifications:

Voltage Rating: 600 Volt
Number of Ports: 4
Cable Entry: 2-Side Entry
Conductor Material: Copper/Aluminum
Minimum Conductor Size: 14 AWG Stranded
Maximum Conductor Size: 4 AWG Stranded
Body Material: Clear Plastisol Covered 6061-T6 Aluminum
Approval: UL 486B, CSA
