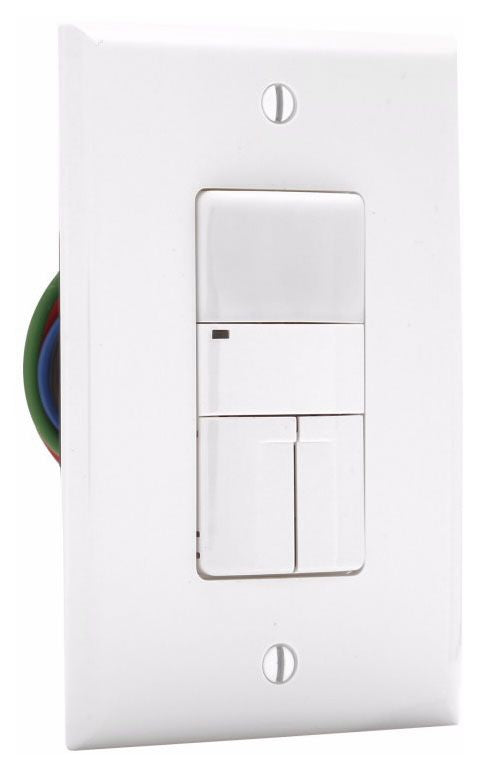

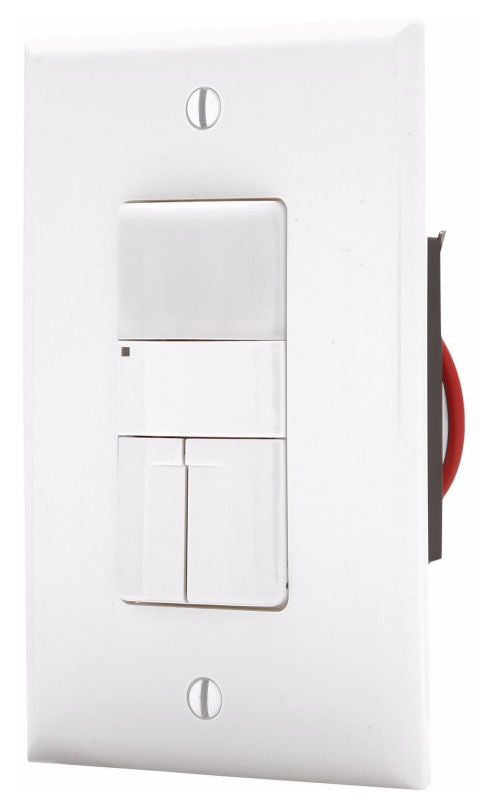

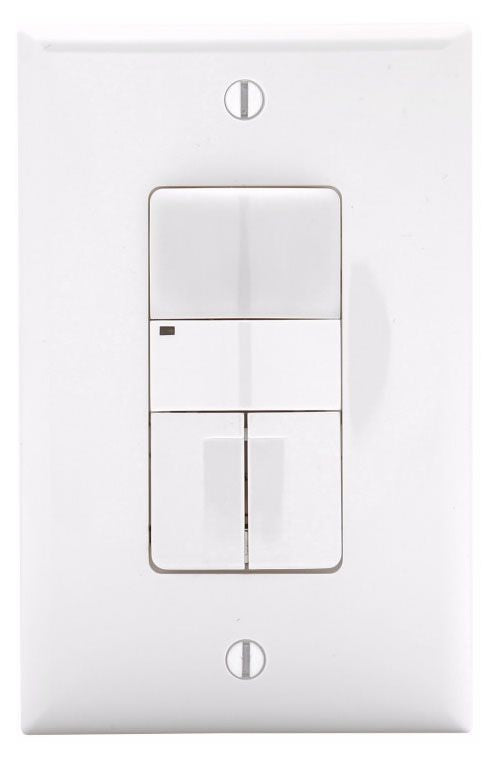

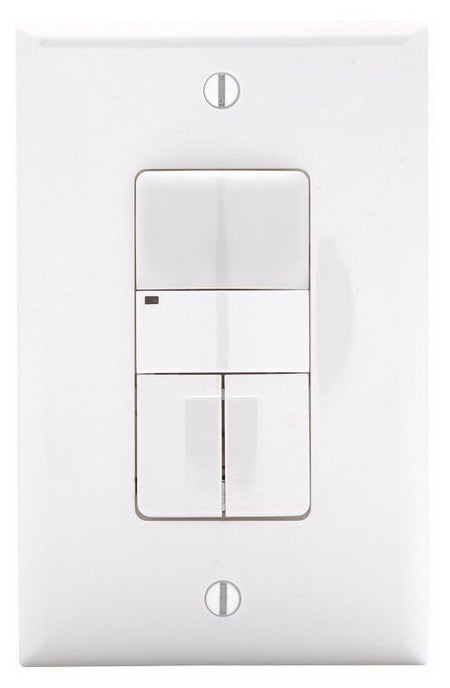

Arrow Hart OSP10D-W Occupancy Sensor

Selectable Automatic on Mode or Manual on Mode; Convenient Installation and Test Mode for Set up; Adjustable Built-In Light Level Sensor; Selectable Time Delay; Self Adjusts Sensitivity and Time Delay-In Real Time with Instinct Technology; Manual OFF Pushbutton Can be Used in Either Automatic or Manual Mode; Reinforced Lens is Tamper-Resistant; Zero-Crossing Technology to Maximize Relay Life and Ensure Wall Switch Longevity

Specifications:

Type: Sensor with Dual Relay
Sensor Type: Passive Infrared
Voltage Rating: 120/277 VAC at 60 Hz
Load Type: Incandescent/Electronic and Magnetic Fluorescent Ballast/Halogen/Motor
Load Rating: 800 W at 120 V (Incandescent/Halogen), 1200 W at 120 V (Fluorescent), 2700 W at 277 V, 1/4 HP at 125 VAC (Motor)
Area Coverage: 300 Sq Ft (Minor Motion), 1000 Sq Ft (Major Motion)
Field of View: 180 Deg
Time Delay: 5 Sec to 30 Min
Wall Plate Type: Decorator (Included)
Terminal Type: Pre-Stripped Wire Lead
Finish: White
Mounting: Wall Box
Size: 3.13 Inch W x 4.88 Inch H
Application: Commercial, Specification Grade, Indoor
Approval: UL (Canada and US), UL 508
