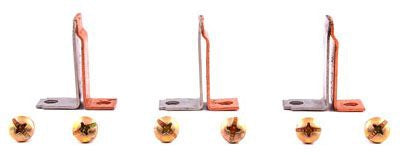

ABB GE Industrial Solutions CR123C366B Overload Relay Heater
Regular price
$23.58
Couldn't load pickup availability
For use with single and polyphase motors. For continuous rated motors with a service factor of 1.15 to 1.25, select heaters from the heater table for the motor full-load amperes. This provides a maximum of 125% protection. For continuous rated motors with 1.0 service factor, multiply the full-load amperes of the motor by 0.90 and use this value to select heaters.
Specifications:
Trip Type: Class 20, Standard
Motor FLA: 35.4 to 40.9 Amp (1-Phase 2-Heater Unit), 32.6 to 36.7 Amp (3-Phase 3-Heater Unit)
NEMA Size: 2, M-1P
Mounting: Panel
Standard Package: 3
Used On: CR124D/CR324D Series Overload Relay, CR340/CR341 Series Pumping Panel
