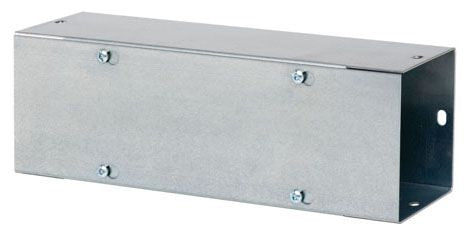

Hoffman Enclosures F1212T160GV Wireway Straight Section

Lay-In Flat-Cover Type 1 Straight Section is Used for Enclosing Wires and Cables in Wireway Run; Section is Completely Open on One Side So Wires and Cables Can be Laid in Along Wireway Run; No Pulling Through of Wire or Cable Prevent Damage to Insulation that Often Occur in a Pull-Through Wiring System; Flat Cover Design Allow for Mounting Flush with Wall or Ceiling; Keyhole Screw Slot on Flat Cover Provide Easy Access; Galvanized Material Provides Superior Corrosion Protection for Outdoor Application

Specifications:

Type: Lay-In
Cover Type: Flat, Screw
Length: 60 Inch
Width: 12 Inch
Height: 12 Inch
Knockouts: No
Material: 16/14 Gauge Steel (Body/Cover)
Finish: Unpainted Galvanized
Enclosure: NEMA 1, IP30
Approval: UL 870, CUL, CSA C22.2
