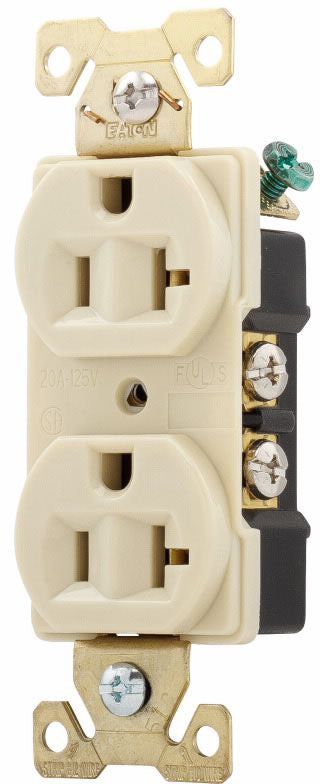

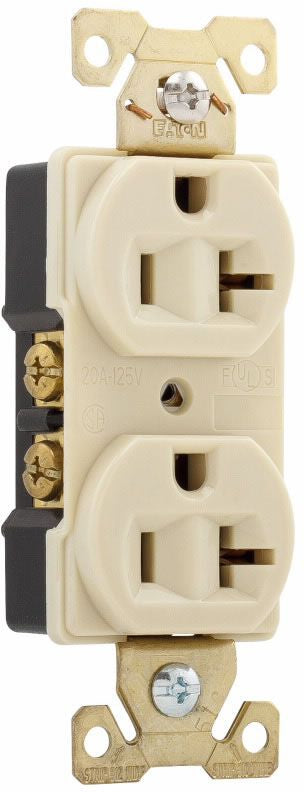

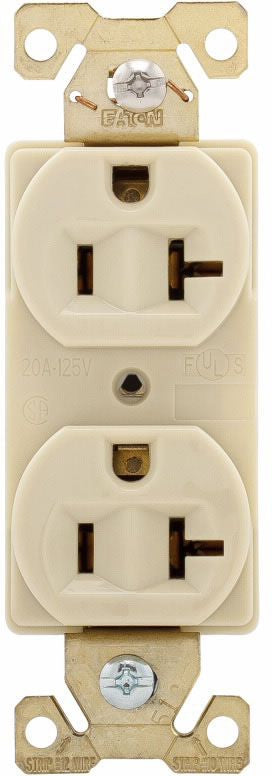

Arrow Hart AH5352V Straight Blade Duplex Receptacle

Exclusive 5-Leaf Solid Brass Line Contacts Ensure Smooth Plug Blade Insertion and Long-Term Retention; Exclusive Solid Brass, Non-Riveted, Integral 1-Piece Grounding Shunt System Assures Ground Integrity Under Heaviest Use; Tapered Lead-In Slots on Back Wiring Holes Assist in Gathering Stranded Wires for Faster, More Secure Connections; Long, Broad Mounting Strap Helps Reach Large Panel Cutouts for Code Compliance; Automatic Grounding System Eliminates Need for Bonding Jumper in Grounded Metal Enclosure, Provides Redundant Measure of Ground Continuity where Jumper is Used; Screw-Catch Feature on Duplex Devices Speeds Mounting of Wall Plate; RoHS Compliant; NAFTA Compliant

Specifications:

Type: Duplex, Straight Blade
Constructional Feature: High Impact Resistant, Chemical Resistant
Configuration: 5-20R
Voltage Rating: 125 Volt AC
Current Rating: 20 Amp
Number of Poles: 2
Number of Wires: 3
Ground Type: Grounding
Material: Nylon (Body), Brass (Contact)
Color: Ivory
Wiring: Back, Side
Grade: Industrial
Approval: UL (Canada and US), UL 498, CSA C22.2, NOM 426
