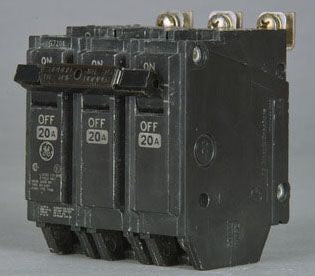

Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels.

Specifications:

Type: Molded Case, Fixed Thermal Magnetic, Internal Common Trip
Number of Poles: 3
Voltage Rating: 240 VAC
Current Rating: 15 Ampere
Interrupting Rating: 65 Kiloampere
Terminal Type: Copper/Aluminum Load Lug, Bolt-On
Wire Size: 14 to 8 AWG (Copper)/12 to 8 AWG (Aluminum)
Mounting: 1 Inch Bolt-On
Used On: AQ Series Panelboard
Size: 3 Inch W x 2-3/8 Inch D x 3-9/32 Inch H
Approval: UL
