Funnel Entry for Faster Insertion and Lower Installed Cost; Designed with a Seamless Barrel to Contain Loose Wire Strands for Superior Terminations; Eases Insertion of Wire into Terminal Block; Suitable for Limited Space Panel Applications; Multiple Pin Lengths Available for a Variety of Terminal Blocks

Specifications:

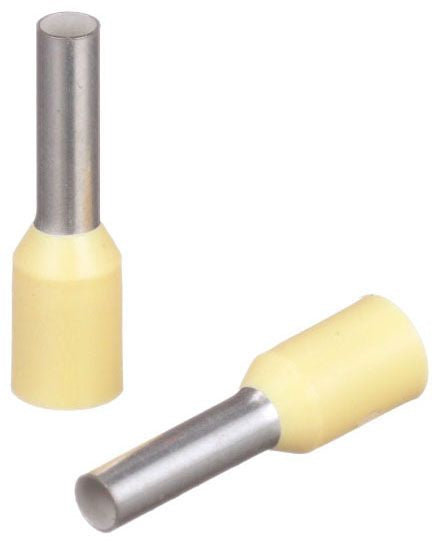

Type: Insulated Ferrule
Material: Tin Plated Copper
Color: Yellow
Construction Standard: DIN
Conductor Size: 14 AWG
Sleeve Length: 0.31 Inch
Sleeve Diameter: 0.08 Inch
Insulation Material: Polypropylene
Size: 0.14 Inch Dia x 0.57 Inch L
Standard Package: 500
Approval: UL 486F, UL 508A, CSA C22.2
