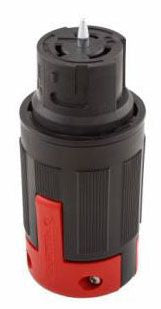

Arrow Hart CS6360EX Locking Device Connector

High Impact Resistant Nylon Housing Can Endure the Roughest Abuse While Providing Added Insulation, Resistance to Breakage and Superior Heat Performance; Cold Rolled Plated Steel Plug Shroud Adds Strength and Resists Corrosion; Deep Tapered Wire Wells are Clearly Marked for Easy Insertion and Isolation of up to 4 AWG Solid or Stranded Wires; Performance Feature Pro Grip Lock Provides Visual Confirmation that the Device is Assembled Properly; 3-Step Assembly is Fastest and Easiest in the Industry; Matte Finish Ribbed Housing Surface Provides Improved Gripping and Handling in any Environment; Glass-Filled Nylon Body for Resistance to Breakage and Superior Heat Performance; Tri-Combo Assembly Screws are Stainless Steel Construction for Corrosion Resistance; NAFTA Compliant; RoHS Compliant

Specifications:

Type: Polarized, California Style
Constructional Feature: Corrosion Resistant, Impact Resistant
Configuration: Non-NEMA Locking
Voltage Rating: 125 VAC
Current Rating: 50 Ampere
Number of Poles: 2
Number of Wires: 3
Ground Type: Grounding
Material: Glass-Filled Nylon Interior, Rugged Nylon Exterior
Color: Black, Red
Cord Size: 0.44 to 1.06 Inch
Approval: UL (Canada and US), UL 498
