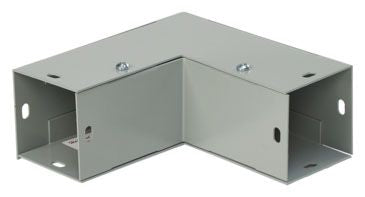

Hoffman Enclosures F4490EOUT Wireway Elbow
Regular price
$36.81
Couldn't load pickup availability
Lay-In Painted 90-Degree Elbows with Outside Opening are Used for Continuous Run with 90-Degree Turns Top, Bottom and Outside Covers Removable Lay-In Feature Allows Wires and Cables Can be Laid in Along Wireway Run No Pulling Through of Wire or Cable Prevents Damage to Insulation that Often Occurs in a Pull-Through Wiring System
Specifications:
Type: Outside Opening
Wireway Type: Lay-In
Cover Type: Flat, Hinged, Screw
Bend Angle: 90 Degree
Width: 4 Inch
Height: 4 Inch
Material: 16/14 Gauge Steel (Body/Cover)
Finish: ANSI 61 Gray Polyester Powder Painted
Enclosure: NEMA 1, IP30
Approval: UL 870, CUL, CSA C22.2
