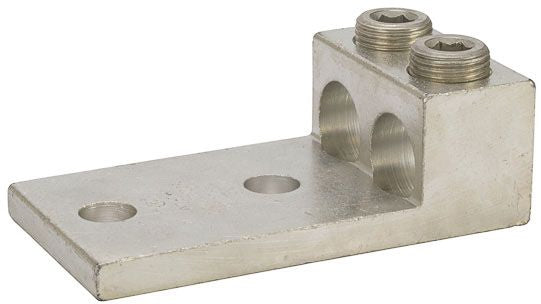

Panelboard Style for Multi-Conductor with NEMA Mounting Hole Spacing for Turn Prevent and Secureness; Electro Tin Plated for Low Contact Resistance; For Use with Copper/Aluminum Conductors

Specifications:

Number of Conductors: 2
Minimum Conductor Size: 2 AWG
Maximum Conductor Size: 600 KCMIL
Conductor Material: Aluminum/Copper
Pad Type: Straight
Screw Type: 3/8 Inch Hex Socket
Material: Aluminum
Number of Pad Holes: 2
Pad Size: 3.4 Inch L x 2.406 Inch W x 0.38 Inch Thk
Stud Size: 0.56 Inch
Overall Length: 4.65 Inch
Approval: UL (Canada and US)
