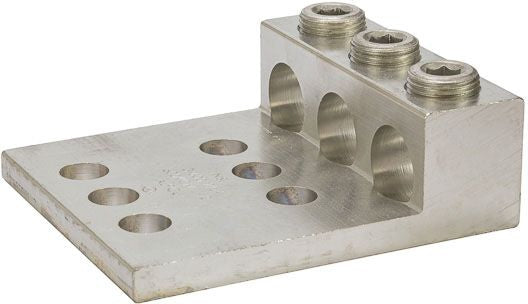

NSi Industries 3-600L2/L4 Mechanical Panelboard Lug
Regular price
$1.11
Couldn't load pickup availability
Panelboard Style for Multi-Conductor with NEMA Mounting Hole Spacing for Turn Prevent and Secureness; Electro Tin Plated for Low Contact Resistance; For Use with Copper/Aluminum Conductors
Specifications:
Number of Conductors: 3
Minimum Conductor Size: 2 AWG
Maximum Conductor Size: 600 KCMIL
Conductor Material: Aluminum/Copper
Screw Type: 3/8 Inch Internal Hex Pressure Screw
Material: Electro-Tin Plated 6061T-6 Aluminum Alloy
Pad Size: 3.4 Inch Length x 2.406 Inch Width x 0.38 Inch Thick
Stud Size: 1/2 Inch
Overall Length: 4.65 Inch
Approval: UL (Canada and US), UL 486A/B
