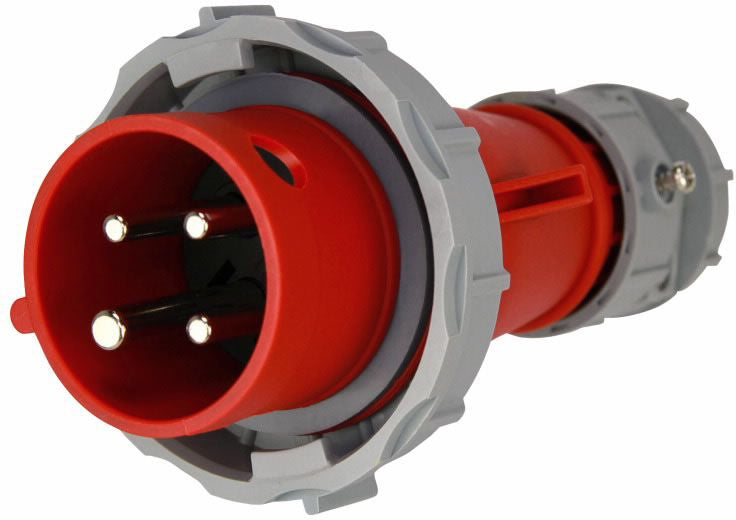

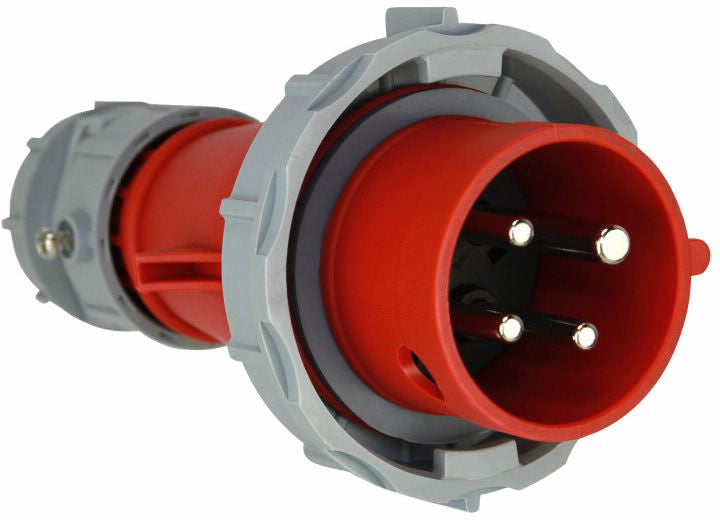

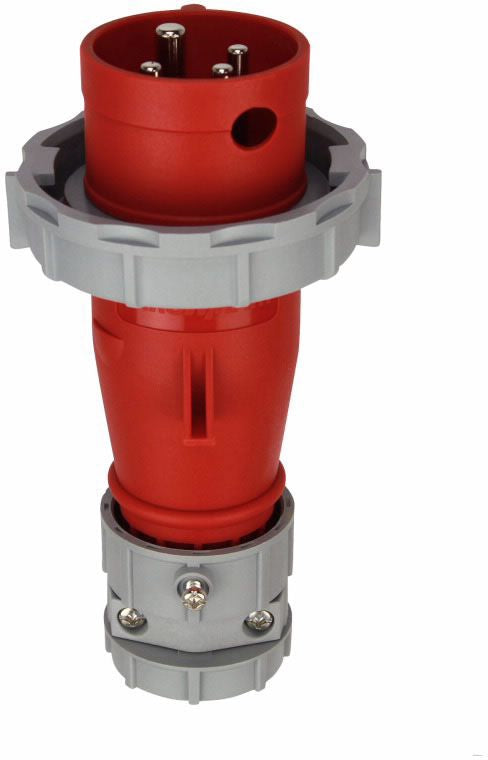

Arrow Hart AH420P7W Pin and Sleeve Plug

Mechanical Cord Clamp with Silicone Rubber Grommet Seal and Locking Screw Ensures a Positive and Water Tight Strain Relief System; Tri-Combo Cord Grip Screws for Convenience; Durable Impact Resistant Thermoplastic Body; Color-Coded Front Housing for Easy and Accurate Identification of Voltages; Oversized Grounding Pin Assures Mating Only with Oversized Female Grounding Sleeve; Staggered Contact to Ensure Ground Makes First and Breaks Last; Engineered Thermoplastic Material Improves Cold Impact Performance; Spring-Loaded Self-Closing Cap with Silicone Rubber Gasket Protects Contacts When Not in Use; Rugged Materials Selected for Use in Wet Locations; Provides Corrosion Resistance; Nickel Plated Pins Offer Long Life Corrosion Protection; Pins Fully Shrouded for Mechanical Protection; Threaded Cable Entry Provides Efficient Means of Attaching Flexible Conduit or Wire Mesh Grips; Tapered Wiring Pockets to Ease Insertion of Stranded Wire; Deep Pockets with Clear Markings Keep Bare Conductors Isolated; Allowable Wire Size 12 to 10 AWG

Specifications:

Constructional Feature: Water Tight
Voltage Rating: 480 Volt AC, 3-Phase
Current Rating: 20 Amp
Number of Poles: 3
Number of Wires: 4
Minimum Cable Outer Diameter: 0.333 Inch
Maximum Cable Outer Diameter: 0.775 Inch
Material: Red Nylon PA6-GF30
Approval: UL (Canada and US), UL 1682/1686, CSA C22.2
