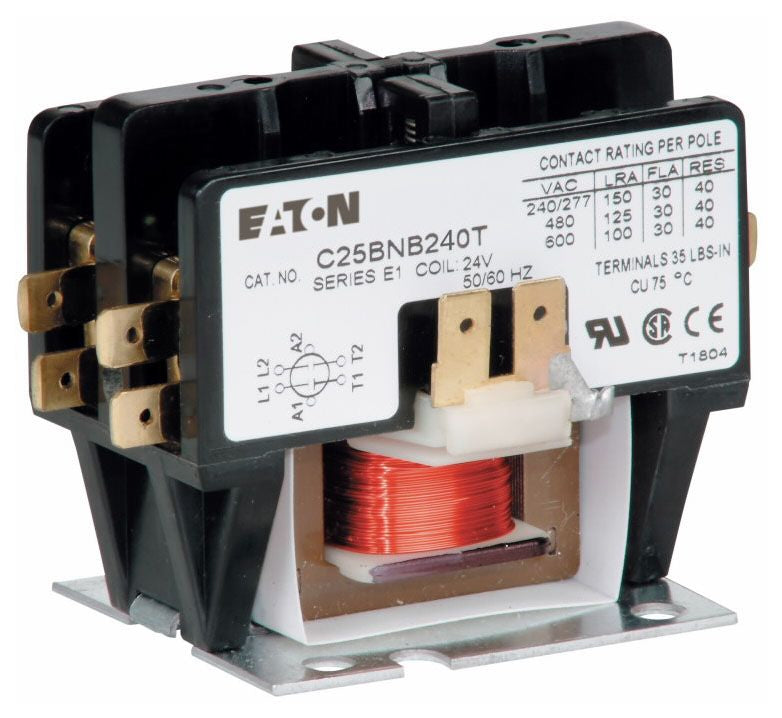

Definite purpose contactors and starters are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry. They are subjected to stringent quality assurance inspections and testing procedures. Suitable for low duty-cycle applications requiring low cost switching of single- and three-phase loads, such as small motors and resistive heating loads.

Specifications:

Type: Non-Reversing
Number of Poles: 2
Power Rating/Voltage: 3 HP at 115 V, 7-1/2 HP at 230 V
Current Rating: 40 Ampere
Inductive Ampere: 40 Ampere
Resistive Ampere: 50 Ampere
Coil Voltage: 24 VAC at 50/60 Hz
Enclosure: Open
Size: Frame B
Approval: UL, CSA, CE
