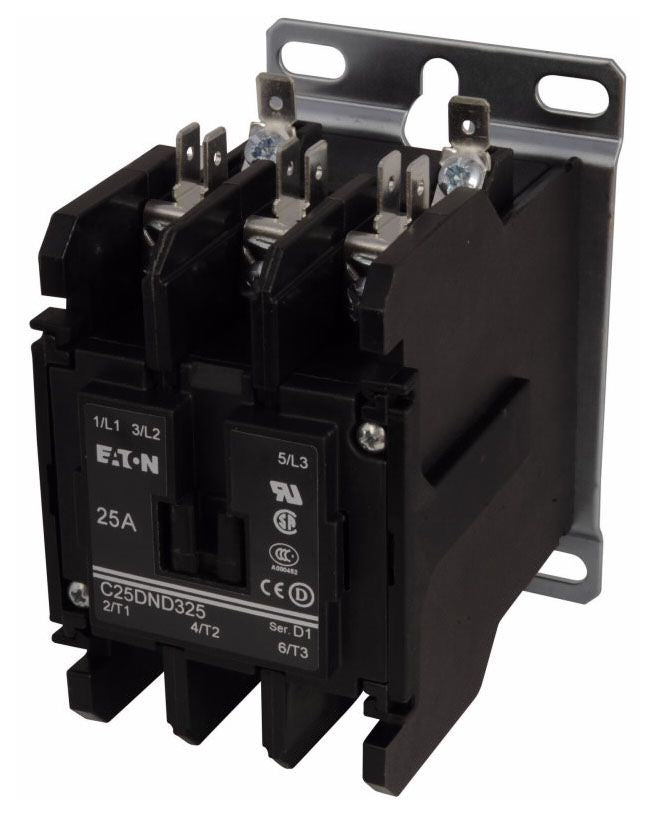

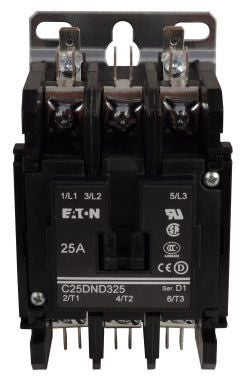

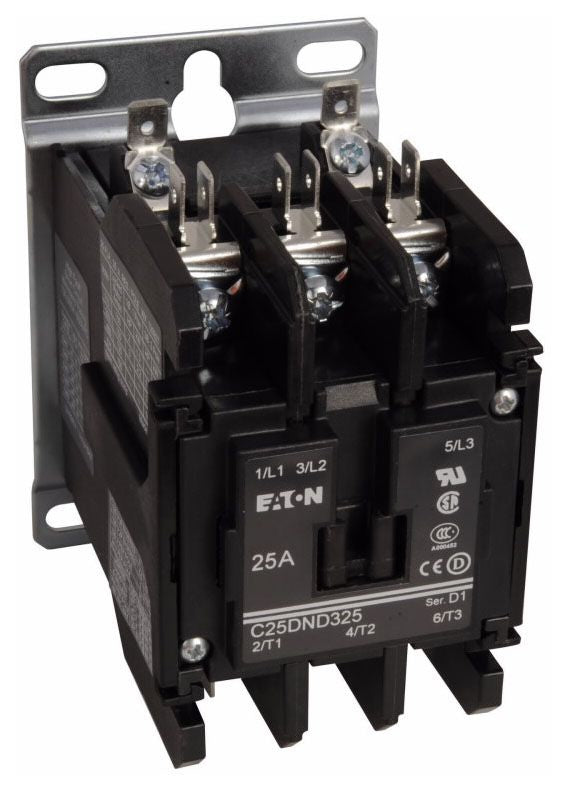

Definite purpose contactors and starters are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry. They are subjected to stringent quality assurance inspections and testing procedures. Suitable for low duty-cycle applications requiring low cost switching of single- and three-phase loads, such as small motors and resistive heating loads.

Specifications:

Type: Non-Reversing
Number of Poles: 3
Power Rating/Voltage: 3 HP at 230 Volt AC 1-Phase, 7-1/2 HP at 230 Volt AC 3-Phase
Current Rating: 25 Amp
Inductive Ampere: 25 Amp
Resistive Ampere: 35 Amp
Coil Voltage: 110 to 120 Volt AC 50/60 Hertz
Enclosure: Open
Approval: UL, CSA, CE
