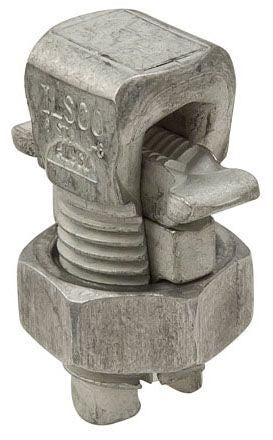

Ilsco AK-6 Mechanical Split Bolt Connector

Dual Rated; Manufactured from Heat Treated Aluminum Alloy; Triangular Edges; Suitable for Use in Circuits Rated 35Kv or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; Electro-Tin Plated; Spacer Bar; Hex Head; Rated to 90 Deg C; Provides Maximum Conductivity and Strength for Copper and Aluminum Conductors; Bite into the Conductor to Break Through Surface Oxides Which Eliminates Wire Brushing; Provides Low Contact Resistance; Separates Dissimilar Metals Which Prevents Galvanic Corrosion; Provides Ease of Installation with Standard Wrenches; Versatility; RoHS Compliant

Specifications:

Voltage Rating: 2000 V
Installation: Hex Head Split Bolt with Spacer Bar
Conductor Material: Aluminum/Copper
Minimum Run Conductor Size: 10 AWG Solid
Maximum Run Conductor Size: 6 AWG Stranded
Minimum Tap Conductor Size: 10 AWG Solid
Maximum Tap Conductor Size: 6 AWG Stranded
Material: Electro-Tin Plated Heat Treated Aluminum Alloy
Approval: UL 670B, CSA
