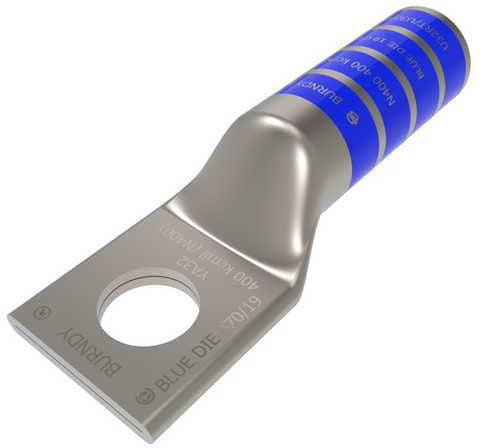

Burndy YA32N Compression Cable Lug

Out of stock
SKU: 220103
Regular price $30.91

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant


Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 400 KCMIL Stranded (Code)
Barrel Type: Long, Standard, Straight
Barrel Length: 2.12 Inch
Pad Size: 1.4 Inch W x 0.19 Inch Thk
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Blue
Die Index: 19/470
Material: Electro-Tin Plated Copper
Overall Length: 4.09 Inch
Approval: UL, CSA
