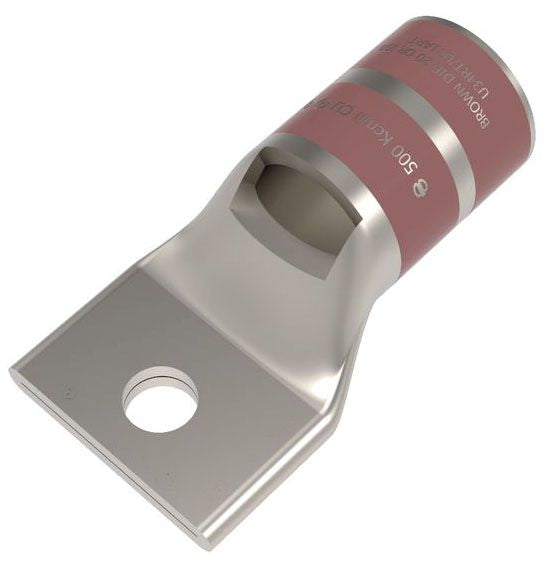

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug, Not Recommended in Highly Corrosive Environments as the Wire in the Barrel is Exposed to Corrosive Elements Installed; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirements; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 500 KCMIL Stranded (Code)
Barrel Type: Short, Standard, Straight, Skived
Barrel Length: 1.27 Inch
Pad Size: 1.55 Inch Width x 0.23 Inch Thickness
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Brown
Die Index: 20/299
Material: Electro Tin Plated Copper
Overall Length: 3.12 Inch
Approval: UL 467, CSA
