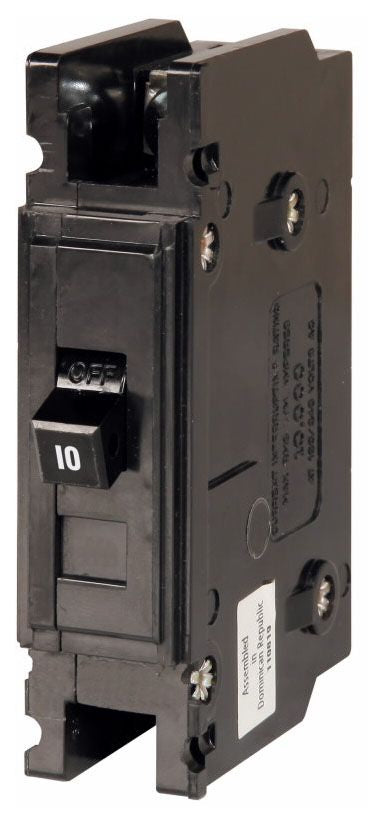

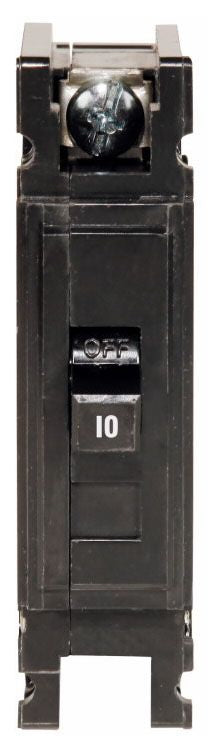

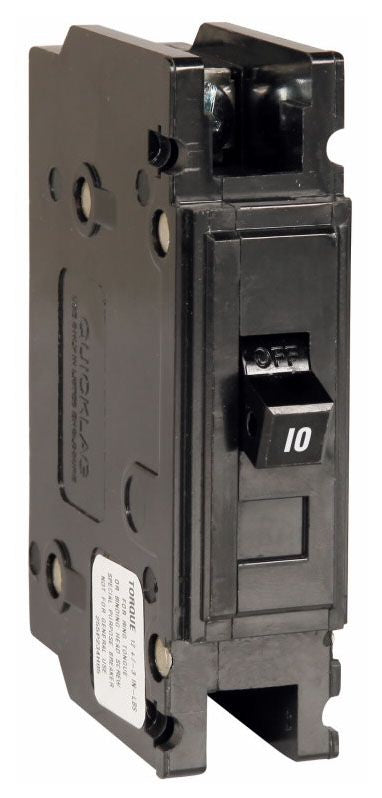

Eaton has a wide selection of UL rated miniature circuit breakers for loadcenters, fuseboxes, or similar devices. Each pole provides steel frame calibration and arc chutes with 5 - 100A continuous in one-, two-, and three-pole designs. A full-range of accessories expand customization options, including various mounting and ring tung termination options.

Specifications:

Type: Thermal Magnetic
Number of Poles: 1
Voltage Rating: 120/240 Volt AC
Current Rating: 10 Amp at 40 Deg C
Interrupting Rating: 10000 Amp at 120/240 Volt AC, 5000 Amp at 24 to 48 Volt DC, 3800 Amp at 62.5 Volt DC
Terminal Type: Ring
Wire Size: 14 to 10 AWG Copper/Aluminum (Load)
Mounting: Cable-In/Cable-Out
Approval: UL 489, CSA
