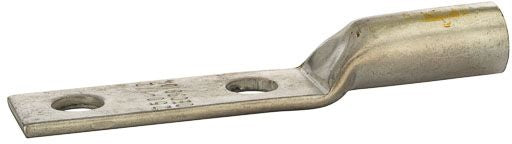

Produced from High Conductivity Tin Plated Copper Tubing; Allows Easy Inspection of the Termination to Assure Complete Cable Insertion; Tin Plated to Provide Corrosion and Low Contact Resistance; Marked with Die Index and Color Coded; Listed for 35 Kilovolt Maximum when Properly Installed; For Applications Greater than 2000 Volt, Installed to Cable Manufacturer for Voltage Stress Relief Instructions

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 250 KCMIL
Barrel Type: Long
Barrel Length: 1.61 Inch
Pad Size: 2.99 Inch Length x 1.09 Inch Width x 0.15 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: Yellow
Die Index: 11/16/1962 12:00:00 AM
Material: Tin Plated Copper
Overall Length: 4.96 Inch
Approval: UL 486A/B, 467, UL (Canada and US)
