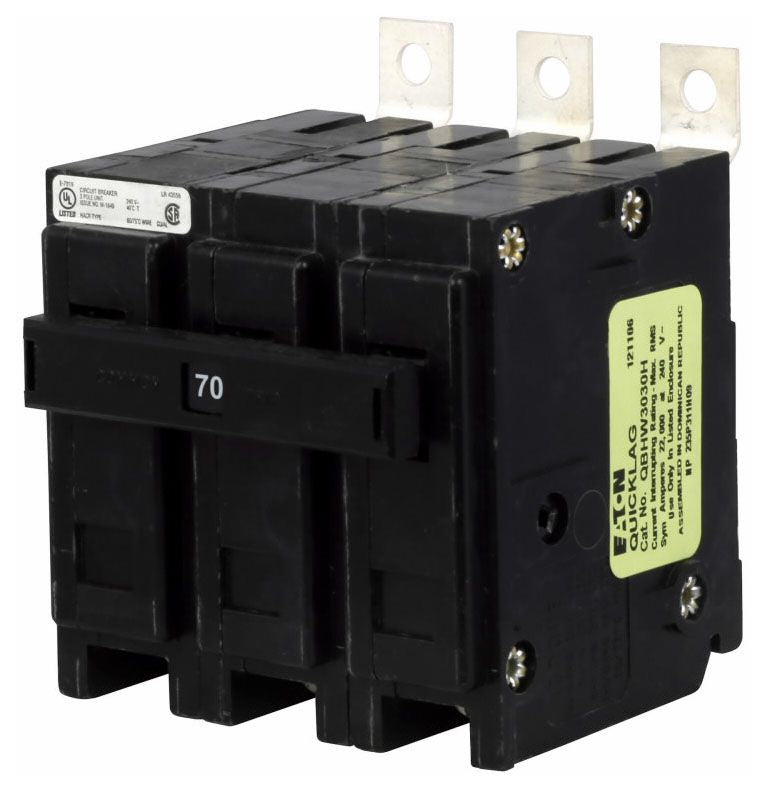

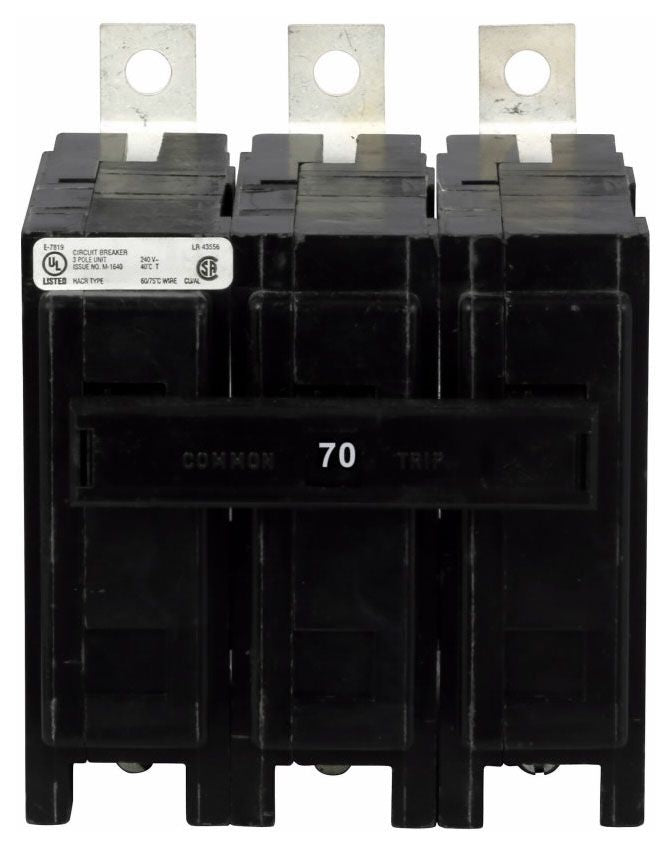

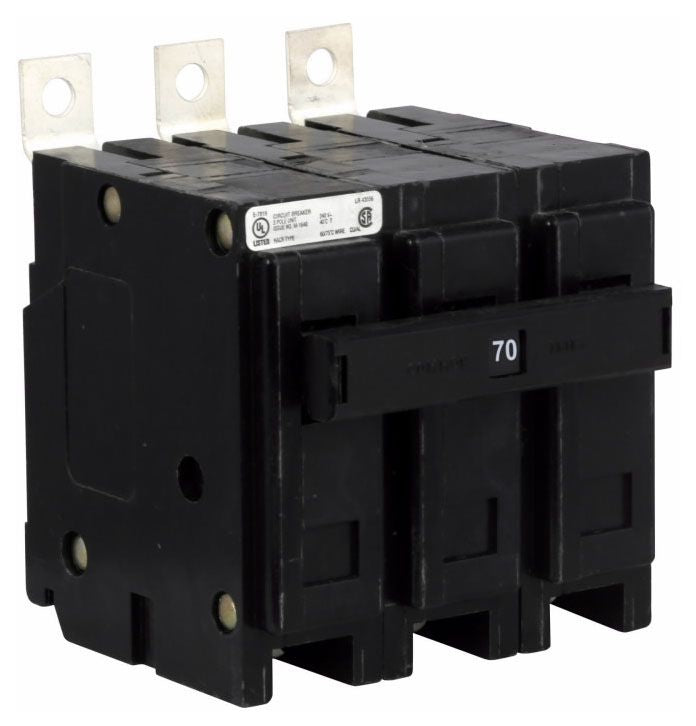

Eaton’s low and medium-voltage circuit breakers provide premium protection for overheating wires, overloads and short circuits in residential, commercial, industrial and hazardous area applications.

Specifications:

Type: Thermal Magnetic
Number of Poles: 3
Voltage Rating: 240 VAC
Current Rating: 70 Ampere at 40 Deg C
Interrupting Rating: 22000 Ampere at 240 VAC
Terminal Type: Extended Tang Line Terminal, Box Lug Load Terminal
Wire Size: 8 to 1/0 AWG (Aluminum/Copper, Load)
Mounting: Bolt-On
Approval: UL 489, CSA
