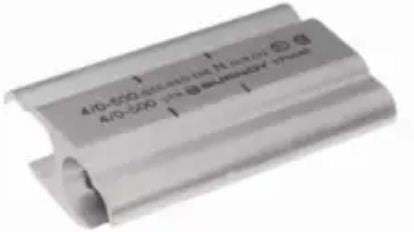

Burndy YFO140 Compression Tap Connector

Each Connector is Factory Sealed in Polyethylene to Ensure Connector is Delivered Free of Foreign Materials Prior to Being Installed; Post Crimp, the Connector is Easy to Tape; Connectors are Clearly Marked; Factory Pre-Filled with Penetrox Type A13 Oxide Inhibitor; Aluminum Oxidation is not Easily Detected but Causes Resistance in a Connection to is it Imperative that the Proper Preparation Takes Place Prior to Making an Aluminum-to-Aluminum Connection; RoHS Compliant

Specifications:

Voltage Rating: 600 V to 35 KV
Shape: H
Conductor Material: Aluminum/Copper
Minimum Run Conductor Size: 6 AWG Stranded (Aluminum)
Maximum Run Conductor Size: 1/0 AWG Stranded (Aluminum)
Minimum Tap Conductor Size: 6 AWG Stranded (Aluminum/Copper)
Maximum Tap Conductor Size: 1 AWG Stranded (Aluminum/Copper)
Die Index: O
Body Material: Tin Plated Aluminum
Approval: UL 486-B, CSA
