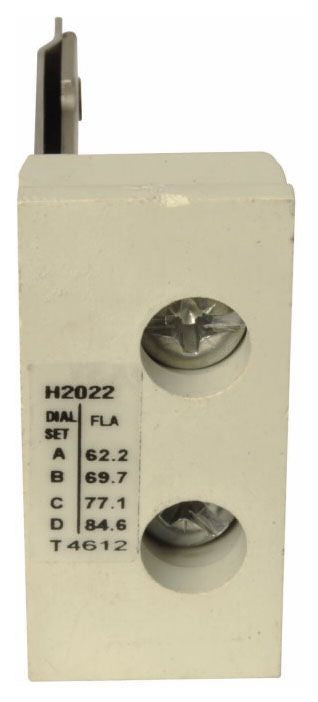

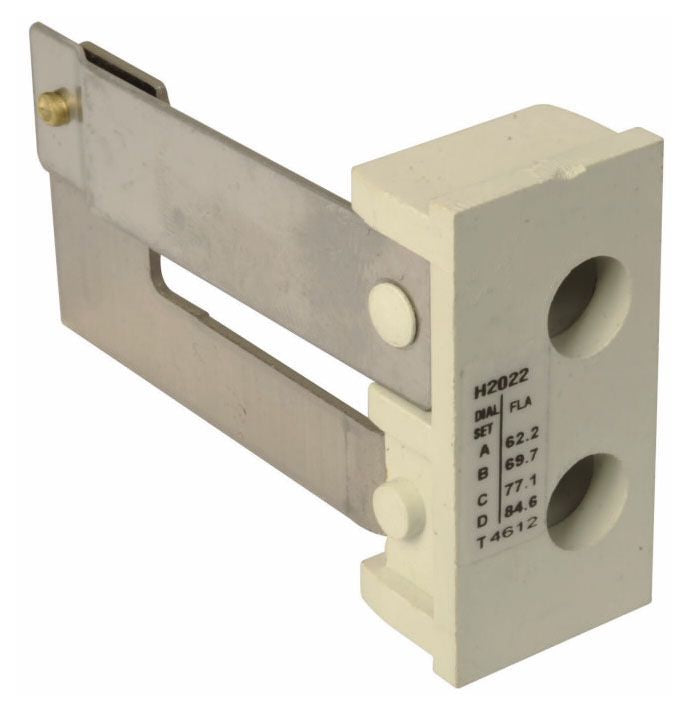

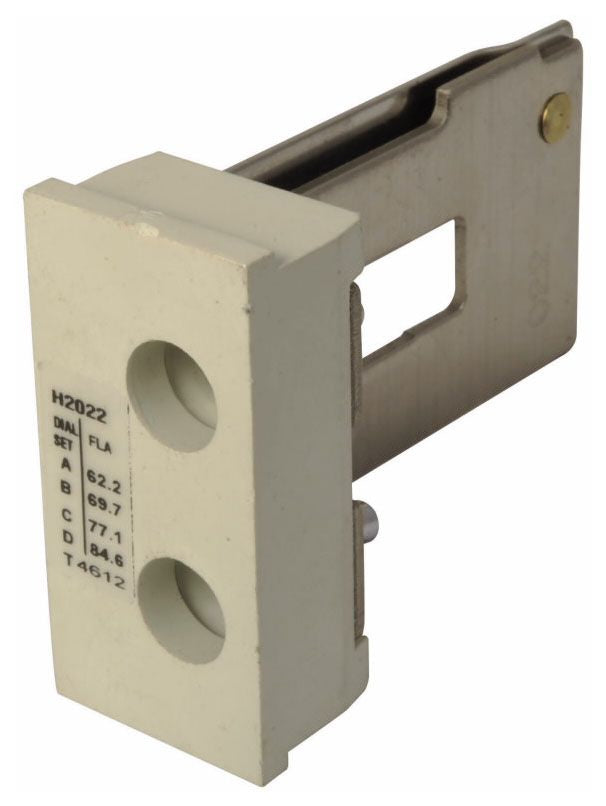

Eaton H2022-3 Overload Relay Heater
Regular price
$135.59
Couldn't load pickup availability
Selectable Manual or Automatic Reset operation; Interchangeable Heater Packs Adjustable +/- 24% to Match Motor FLA and Calibrated for 1.0 and 1.15 Service Factors; Heater Packs for Smaller Overload Relay will Mount in Larger Overload Relay Useful in Derating Applications Such as Jogging; Load Lugs Built into Relay Base
Specifications:
Trip Type: Class 20, Standard
Motor FLA: 62.2 to 84.6 Amp
Relay Current Rating: 105/144 Amp
NEMA Size: 3, 4 (Enclosed)
IEC Size: L to N
Standard Package: 3 per Pack
Approval: UL, CSA
Used On: Overload Relay
Accessory Type: Overload Heater
