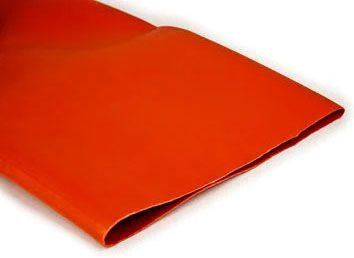

3M BBI-4A-RED-20FT-ROLL Bus Bar Tubing

  • Sale
  • Regular price $20.98
Shipping calculated at checkout.


3Mâ„¢ Bus Bar Heat Shrink Tubing BBI is a flame retardant tubing that provides reliable protection and insulation for 5 to 35 kV rated applications. The cross linked polyolefin construction is split and solvent resistant while offering good tracking resistance. It offers a tight fit for rectangular, square or round bus bars.

Specifications:

Type: Heat
Voltage Rating: 5 to 25 KV
Minimum Busbar Circumference: 5.43 Inch
Maximum Busbar Circumference: 8.86 Inch
Length: 20 Ft
Temperature Rating: 230 Deg F
Material: Cross Linked Polyolefin
Color: Orange/Red
Busbar Size: 2-1/2 Inch L x 3/8 Inch W to 4 Inch L x 3/4 Inch W (Rectangular), 2 Inch L x 2 Inch W (Square), 1-3/4 to 2-3/4 Inch Dia (Round)
