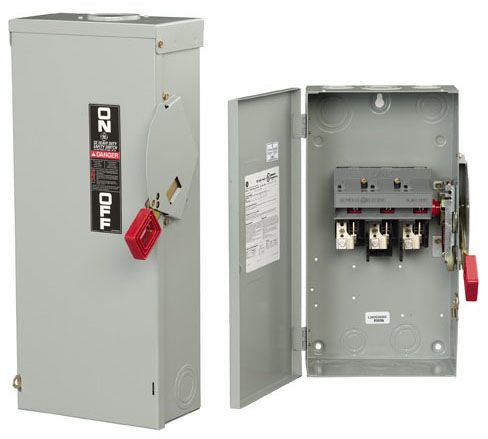

ABB GE Industrial Solutions TH3226 Safety Switch

Designed for Commercial and Industrial Applications Where Safety, High Performance and Continuity of Service are Essential; Listed to UL Standard 98 Enclosed and Dead Front Switches; Suitable for Use as Service Equipment When Installed in Accordance with the National Electrical Code; Certified to CSA Standard 22 2 No 4-04 Enclosed and Dead Front Switches; Meets or Exceeds NEMA KS1 Standard for Enclosed Switches, Type HD; Quick-Make, Quick-Break Mechanism; 60/75 Deg C Conductor Rating; Full Cover Interlocks

Specifications:

Type: Heavy Duty Safety
AC Voltage Rating: 240 Volt
DC Voltage Rating: 250 Volt
Current Rating: 600 Amp
Power Rating: 75 HP at 240 Volt AC 3-Phase (NEC Standard), 200 HP at 240 Volt AC 3-Phase (Time Delay), 50 HP at 250 Volt DC
Number of Poles: 2
Number of Wires: 3
Fuse Provision: Fusible
Fuse Type: Class H/J/R
Enclosure: NEMA 1
Size: 22.9 Inch Width x 8.3 Inch Depth x 50.9 Inch Height
Approval: UL 98, CUL, Federal Specification WS-865C
