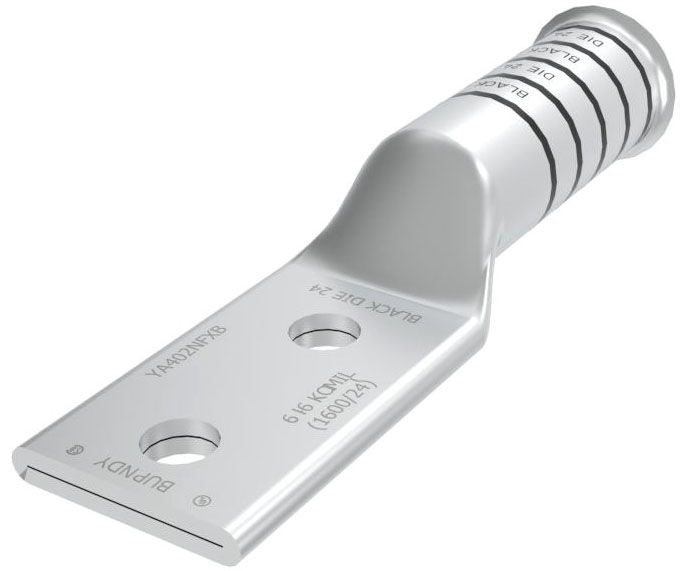

Burndy YA402NFXB Compression Cable Lug

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with a Belled End Opening at the wire Entry to Ensure Smooth Insertion of Highly Flexible Standard Wire, Preventing Possible Damaging of the Wire Strands During Insertion; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 1600/24 Diesel Locomotive Cable, 646 KCMIL (Flex)
Barrel Type: Long, Belled, Standard, Straight
Barrel Length: 3.24 Inch
Pad Size: 1.98 Inch W x 0.3 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: Black
Die Index: 24
Material: Electro-Tin Plated Copper
Overall Length: 7.22 Inch
Approval: UL, CSA
