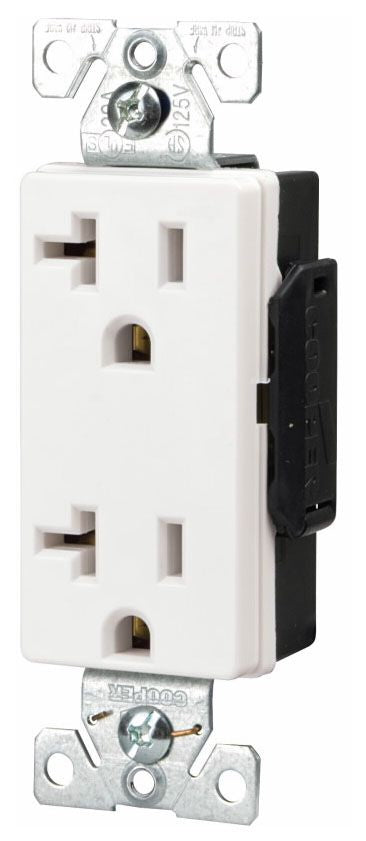

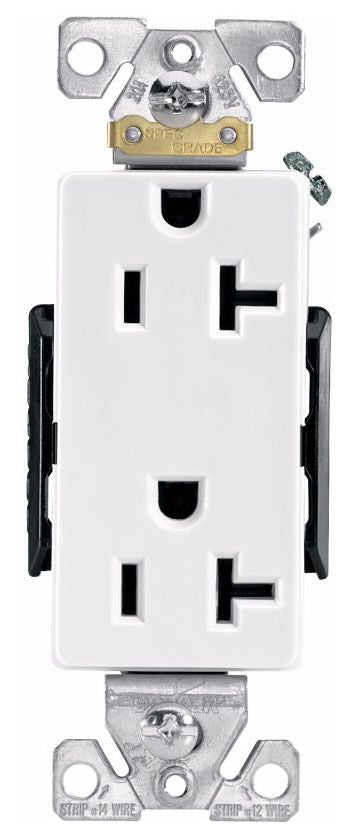

Arrow Hart 6342W Straight Blade Receptacle

High performance receptacles for the most demanding of environments Arrow Hart’s offering of straight blade receptacles cover the full range of hospital, industrial, construction and commercial grades along with special solutions like corrosion resistant, severe duty insulated and watertight straight blade receptacles for complex environments. Industrial grade straight blade receptacles Designed from the inside out, these receptacles meet and exceed the UL498 and federal specification WC-596 standards to withstand the most abusive environments and excel in applications that demand the highest levels of performance.

Specifications:

Type: Decorator Duplex
Constructional Feature: Chemical Resistant, Impact Resistant
Configuration: 5-20R
Voltage Rating: 125 VAC
Current Rating: 20 Ampere
Number of Poles: 2
Number of Wires: 3
Ground Type: Grounding
Material: Nylon Face, PVC Base
Color: White
Wiring: Side
Grade: Industrial
Approval: UL 498, CSA C22.2, NOM 426
