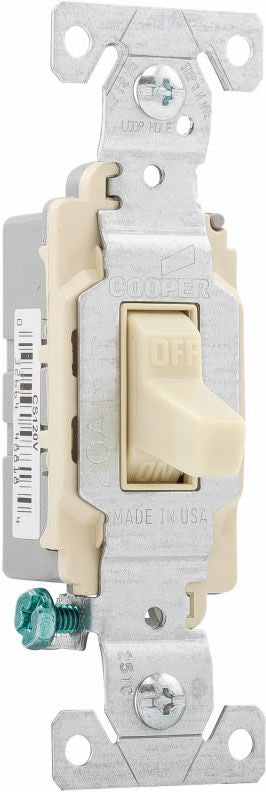

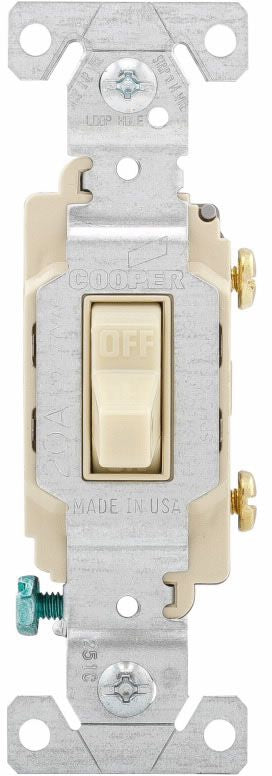

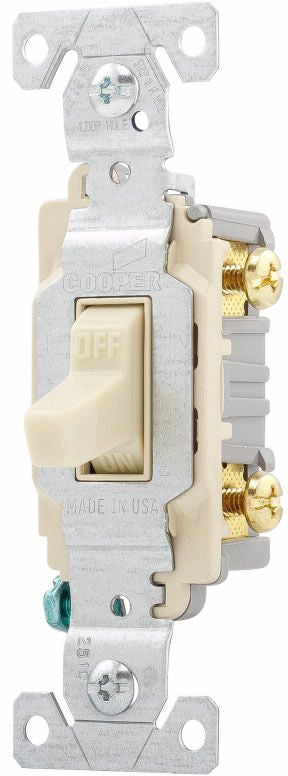

Arrow Hart CS120V AC Toggle Switch

Patent Pending Spring Cup Toggle Design for Robust Actuation; Terminal Screws Backed Out and Ready for Wiring; Tri-Combo Head Mounting and Terminal Screws Ease Installation; Tapered Lead-in Slots on Back Wiring Holes Assist in Gathering Stranded Wires for Faster, More Secure Connections; Allowable Wire Size 14 to 10 AWG; RoHS Compliant; NAFTA Compliant

Specifications:

Type: Toggle
Current Rating: 20 Amp
Voltage Rating: 120/277 Volt AC
Power Rating: 1 HP at 120 Volt AC, 2 HP at 277 Volt AC
Operation Type: 1-Pole
Material: Nylon (Toggle), PVC (Housing), Nickel Plated Galvanized Steel (Strap)
Color: Ivory
Wiring: Side
Size: 1.3 Inch Length x 0.902 Inch Width x 4.2 Inch Height
Application: Commercial
Approval: UL (Canada and US), UL 20/94, NOM 426, FS 6241 05
