Convertible; Invertible; Insta-Wire Neutrals and Ground; Copper Busbar; Dual Neutrals on All Configuration; Ground Bars Included

Specifications:

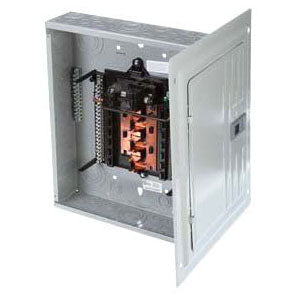

Type: Main Breaker, Convertible
Voltage Rating: 120/240 Volt AC
Current Rating: 100 Ampere
Circuit Configuration: 1-Phase 3-Wire
Maximum Number of Circuits: 24
Maximum Number of Spaces: (12) 1 Inch
Interrupting Rating: 22 Kiloampere
Neutral Type: Bonded, Groundable
Bus Material: Copper
Feed Location: Bottom
Main Wire Size: 1/0 AWG (Copper), 3/0 AWG (Aluminum) Main Breaker
Enclosure Type: NEMA 1, Indoor
Cover Type: Flush/Surface
Enclosure Size Designation: 1
Size: 14-1/4 Inch Width x 3-7/8 Inch Depth x 18 Inch Height
Approval: UL
