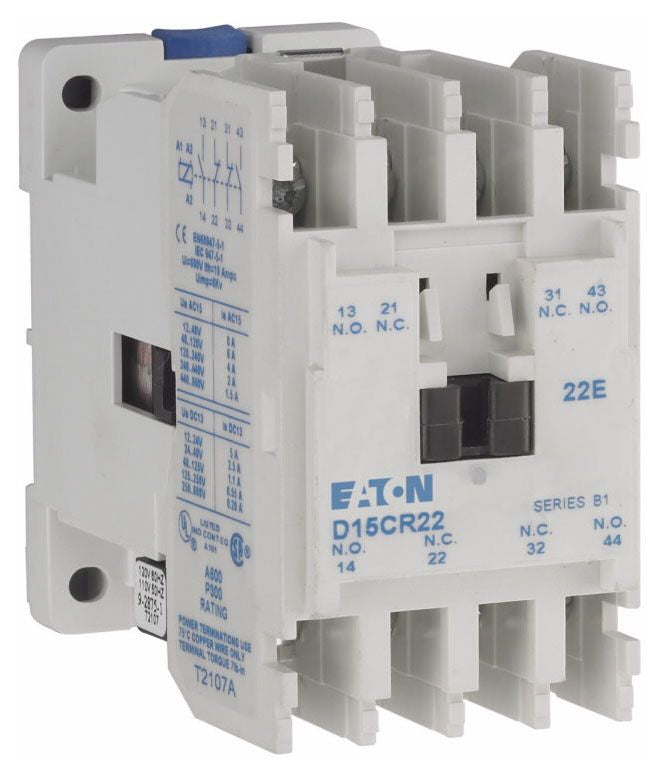

Contact poles on the D15 relay are of the fixed design and are not convertible. The basic four-pole relay will accept a front-mounted contact pole deck and/or side-mounted contact blocks (one per side). In addition, a side-mounted solid-state timer or a front-mounted pneumatic timer can be added to the relay. Only one front-mounted attachment can be added to the basic relay.

Specifications:

Type: AC Operated
Coil Voltage: 110 Volt AC at 50 Hertz, 120 Volt AC at 60 Hertz
Number of Poles: 4
Contact Voltage Rating: 600 Volt AC
Contact Current Rating: 10 Amp
Contact Type: Fixed
Contact Configuration: 2NO-2NC
Terminal Type: Self Lifting Pressure Plate, Screw
Mounting: 35 MM DIN Rail
Enclosure: Open
Approval: UL, CSA
