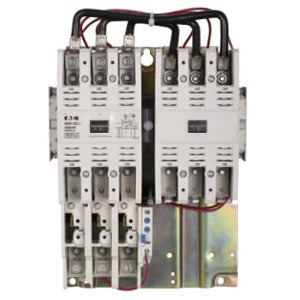

Cutler-Hammer AN56KN0A NEMA Starter

Reducing the Number of Different Contactor/Overload Relay Combinations that have to be Stocked; Straight-Through Wiring Line Lugs at Top, Load Lugs at Bottom; Horizontal or Vertical Mounting on Upright Panel for Application Freedom; Screw Type Power Terminals have Captive, Backed-Out Self-Lifting Pressure Plates with +/-Screws Reduced Wiring Time

Specifications:

Type: Full Voltage, Reversing
Power Rating/Voltage: 25 HP at 208 Volt 3-Phase, 30 HP 240 Volt 3-Phase, 50 HP at 380 Volt AC 50 Hertz/480/600 Volt 3-Phase
Current Rating: 90 Amp
Phase: 1 or 3
Coil Voltage: 110 Volt AC at 50 Hertz, 120 Volt AC at 60 Hertz
Size: NEMA 3
Enclosure Type: Open
Overloads: Bi-Metallic Ambient Compensated Overload Relay
Construction Standard: NEMA
