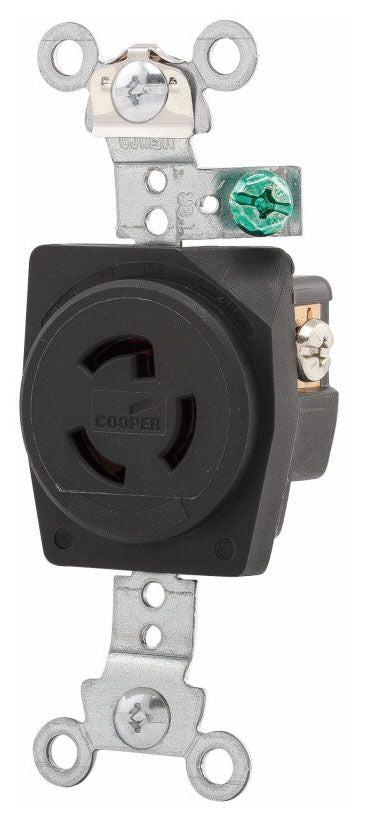

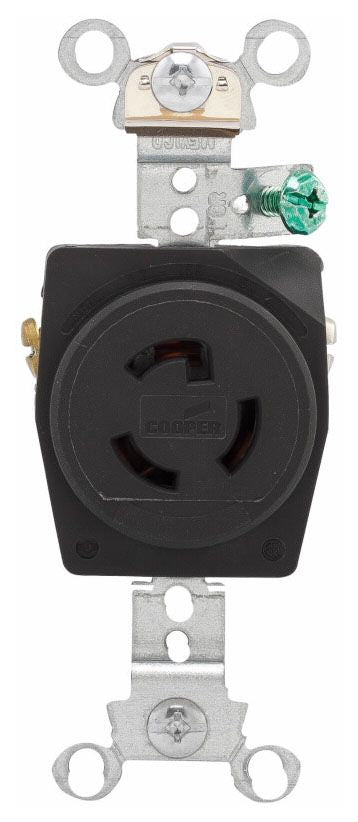

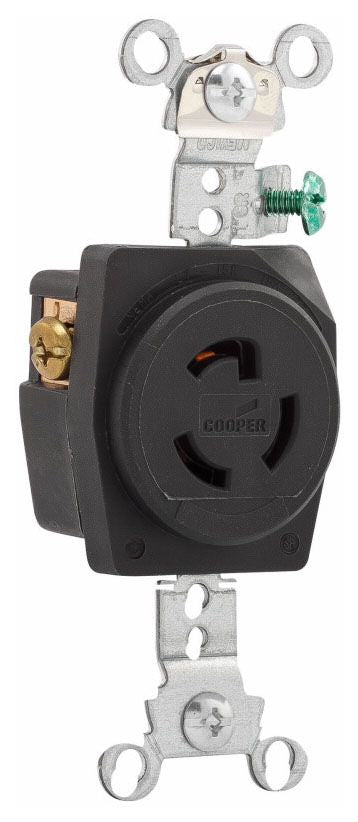

Arrow Hart CWL715R Locking Device Single Receptacle

Performance Feature Heavy Duty Glass Reinforced Nylon Body and Face for Rugged Durability; Compact Body Design Allows for Adequate Wire Room in Wallbox; Heavy Interior Walls Provide Additional Support to Ensure Contact Retention; Heavy-Duty Mounting Strap is Double Riveted to Body for Added Strength; One Piece Brass Contacts Provide Excellent Plug Retention and Electrical Continuity with Minimum Heat Rise; Amperage/Voltage is Clearly Marked; Serrated Terminal Plates Bite Wire to Insure Strong, Reliable Wiring Connections; Back and Side Wired Terminal Design Allows for Fast Installation; Multiple-Head Screws Provide Versatility for Ease of Use; NAFTA Compliant; RoHS Compliant

Specifications:

Type: Single Locking
Configuration: L7-15R
Voltage Rating: 277 VAC
Current Rating: 15 Ampere
Number of Poles: 2
Number of Wires: 3
Ground Type: Grounding
Face Outer Diameter: 1.38 Inch
Material: Glass-Filled Nylon
Color: Black
Wiring: Back, Side
Approval: UL 498, CSA C22.2
