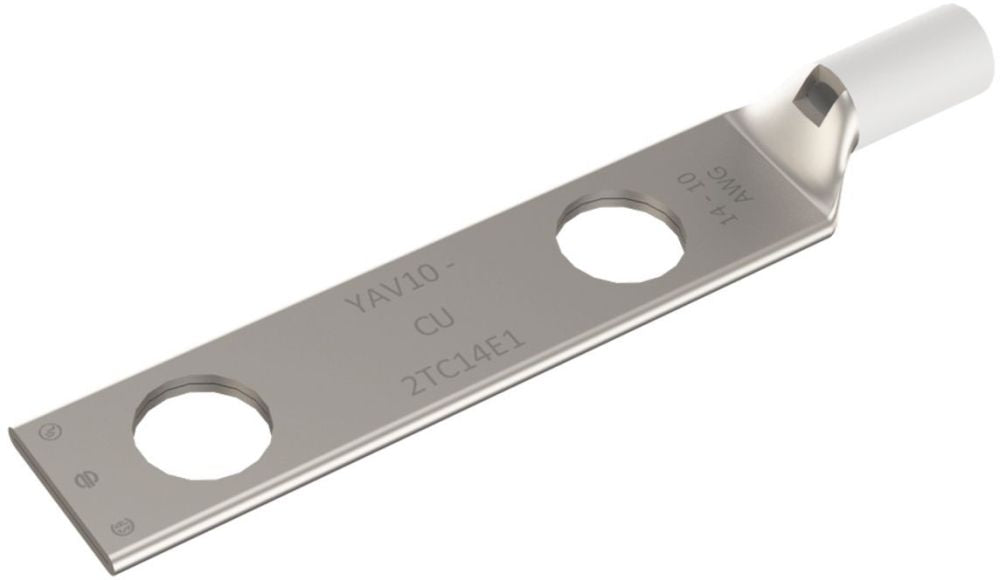

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirement

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 12 to 10 AWG Solid, 14 to 10 AWG Stranded (Code)
Barrel Type: Short, Standard, Straight
Barrel Length: 0.38 Inch
Pad Size: 0.56 Inch W x 0.04 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1 Inch
Stud Size: 3/8 Inch
Material: Electro-Tin Plated Copper
Overall Length: 2.4 Inch
Approval: UL, CSA
