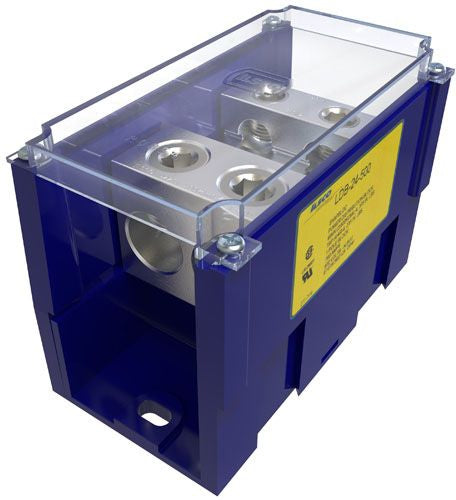

Ilsco LDB-24-500 Power Distribution Block

Modular Design Simplifies Stocking Combines any Number of Blocks with Multiple Conductor Ranges into the Specific Configuration Required for the Job; Easy to Assemble Unique Locking Feature Allows Individual Blocks to be Combined Quickly without Special Tools; Electro Tin Plated Aluminum Suitable for Use with Both Copper and Aluminum Conductors in any Combination; Clear Cover Included Permits Visual Inspection; Multiple Conductor Capability; RoHS Compliant

Specifications:

Type: Modular
Voltage Rating: 600 Volt
Current Rating: 760 Amp
Number of Primary Openings per Pole: 2
Primary Opening Wire Size: 4 AWG to 500 KCMIL
Number of Secondary Openings per Pole: 4
Secondary Opening Wire Size: 6 to 4/0 AWG
Conductor Material: Copper/Aluminum
Cover Type: Clear
Size: 3 Inch Length x 5-1/2 Inch Width x 3-7/16 Inch Height
Temperature Rating: 90 Deg C
Connector Material: Electro-Tin Plated 6061-T6 Aluminum Alloy
Approval: UL 1059, CSA
