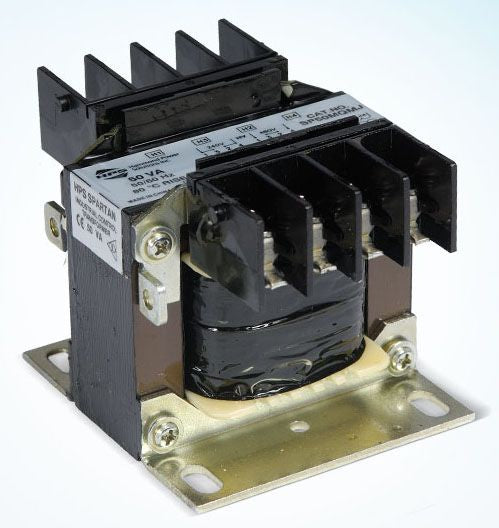

Hammond Power Solutions SP150NJ Industrial Control Transformer

The HPS Spartan line of industrial open core and coil control transformers are ideally suited for general purpose, industrial and light duty loads. Designed for applications where high inrush or machine tool duty are not necessary, the HPS Spartan offers an efficient and economical solution. These units are well suited for HVAC applications, signal and alarm systems, motor control circuits, lighting and circuit isolation. The HPS Spartan control transformer is an open style unit with molded terminal blocks from 50 Volt Amp up to 3000VA or 30 amps.

Specifications:

Primary Voltage: 277 Volt AC
Secondary Voltage: 120 Volt AC
Frequency Rating: 50/60 Hertz
Power Rating: 150 Volt Amp, 150 Volt Amp (CE)
Insulation Class: 130
Terminal Type: Screw
Temperature Rise: 80 Deg C
Mounting: 0.44 Inch Length x 0.22 Inch Width Slot
Size: 2.99 Inch Width x 4.29 Inch Depth x 2.85 Inch Height
Approval: UL, CSA, CE
Applicable Standard: IEC 61558, NEMA (ST-1)
