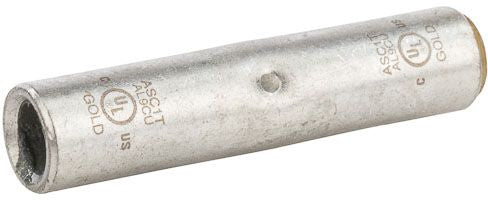

Produced from High Conductivity Aluminum Tubing; Center Stop Assures Proper Cable Installation; Electro Tin Plated for Corrosion Resistance; Color Coded and Marked with Die Index Information; Pre-Filled with Oxide Inhibitor and Capped with Color Coded Cap; Listed for 35 Kilovolt Maximum When Properly Installed to Cable Manufactures Specifications

Specifications:

Type: Center Wire Stop
Conductor Size: 1 AWG
Conductor Material: Aluminum/Copper
Color Code: Gold
Barrel Type: Standard
Length: 2.378 Inch
Inner Diameter: 0.347 Inch
Outer Diameter: 0.531 Inch
Body Material: Tin Plated Aluminum
Approval: UL (Canada and US)
