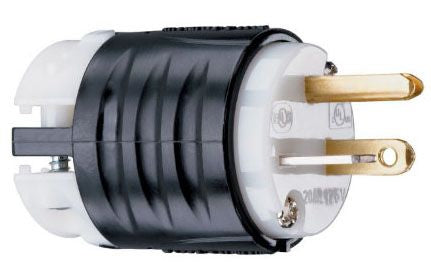

Pass & Seymour PS5366X Straight Blade Plug

In stock - 16 items available
SKU: 22992
Regular price $22.40

Unit Arrives Completely Ready to Wire, Cuts Installation Time Significantly; Nylon Housing Provides Impact and Chemical Resistance; Rugged 2-Piece Cord Grip Provides More Uniform Cord Retention; Internal Dust Shield Keeps Terminals Free of Contaminants; Tri-Drive Assembly Screws are Standard on All Specification Grade Plugs and Connectors; All 3-Wire Terminals Located on the Same Plane, Allows for Quick Wire Termination from any Angle; Heavy Duty Brass Alloy Blades and Contacts, Resist Heat Rise, Provide Excellent Conductivity; Cord-Grip Screws Recessed to Protect Installer Against Screwdriver Head Slippage

Specifications:

Type: Polarized
Constructional Feature: Impact/Chemical Resistant
Configuration: 5-20P
Voltage Rating: 125 Volt AC
Current Rating: 20 Amp
Number of Poles: 2
Number of Wires: 3
Ground Type: Grounding
Cord Size: 0.23 to 0.72 Inch
Material: Nylon
Color: Black/White
Grade: Extra Hard Use Specification
Approval: UL 498, CSA C22.2
