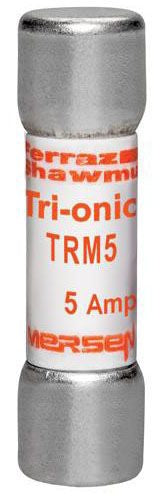

Mersen EP TRM5 Midget Fuse

Out of stock
SKU: 23007
Regular price $3.08

Tri-Onic TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).


Characteristics: 12 Second Time Delay (200 Percent Rated Load)
Voltage Rating: 250 Volt AC
Current Rating: 5 Amp
Interrupting Rating: 10 Kiloamp (AC)
Terminal Type: Ferrule
Diameter: 0.41 Inch
Length: 1.5 Inch
Approval: UL 248-14, CSA C22.2
