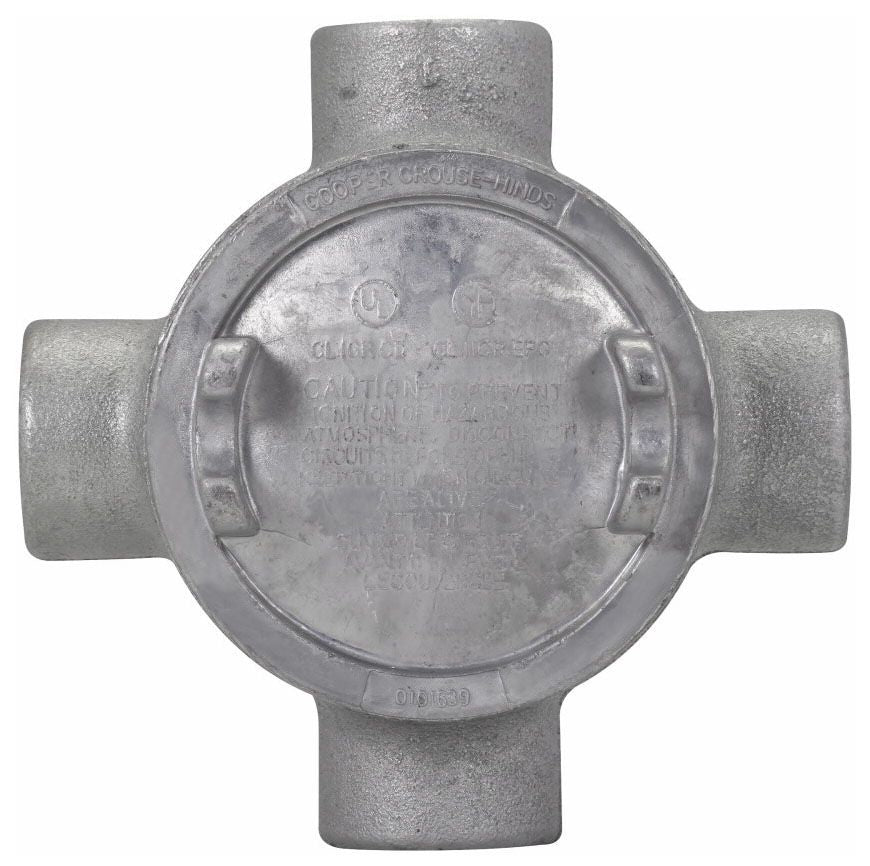

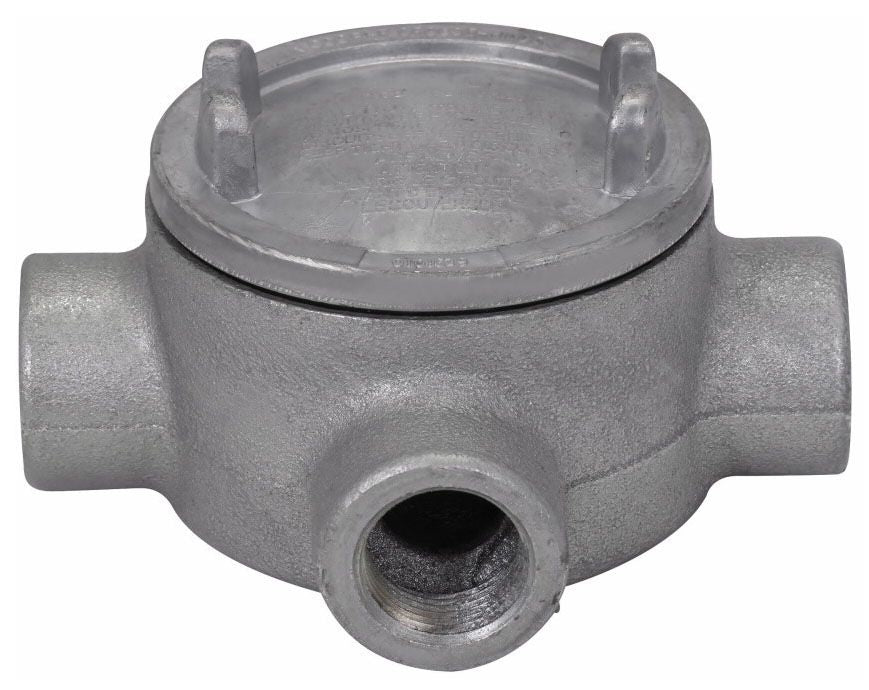

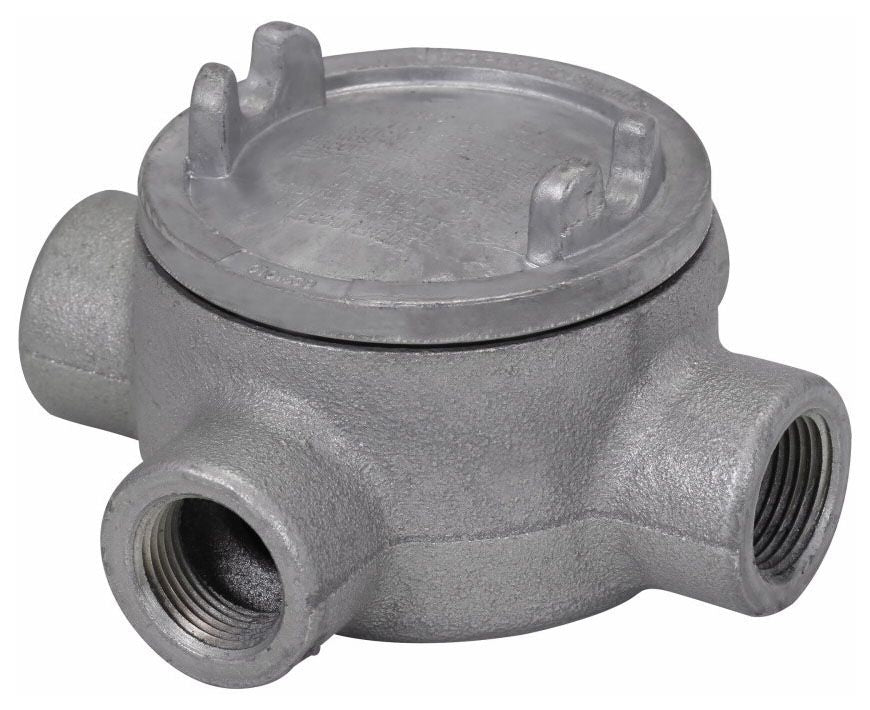

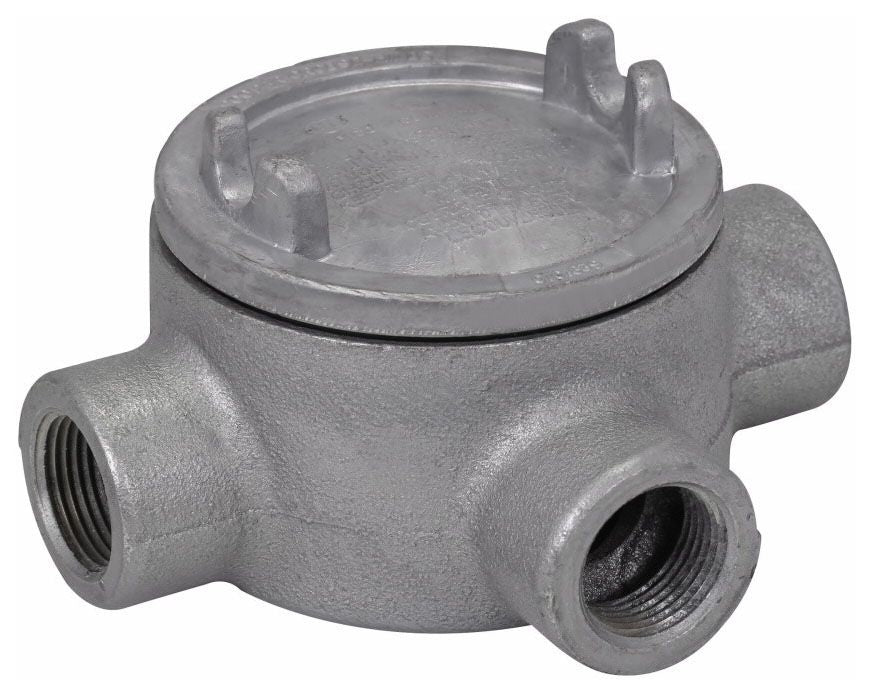

Crouse-Hinds GUAX36 Explosionproof Conduit Outlet Box

Crouse-Hinds series GUA and GUR explosionproof conduit outlet boxes are installed in conduit systems in hazardous areas to protect conductors in threaded rigid conduit, act as pull and splice boxes, change conduit direction, and provide access to conductors for maintenance and future system changes. GUA and GUR outlet boxes are certified for Class I, Division 1, Groups B, C, D and Class II, Division 1, Groups E, F, G. GUA boxes are available in ten different hub arrangements, maximizing flexibility in the conduit system. They are available in Feraloy iron alloy (1/2" to 2"), copper-free aluminum (1/2" to 2") or stainless steel (3/4" and 1") construction.

Specifications:

Style: X
Hub Size: 1 Inch
Hub Type: Taper Threaded
Number of Hubs: 4
Hub Location: (4) Side
Shape: Round
Cover Type: Externally Threaded
Cover Opening Diameter: 3 Inch
Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/4/7C/7D/9E/9F/9G
Material: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy (Body), Natural Copper-Free Aluminum (Cover)
Mounting: (4) Pad
Approval: UL 1203, CSA C22.2
