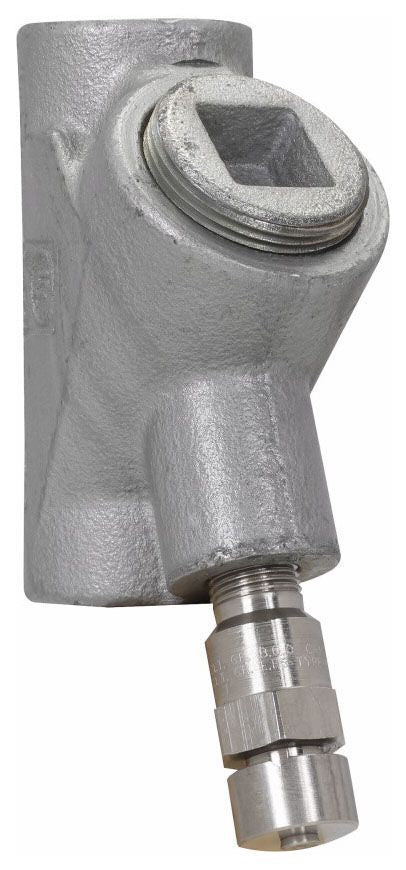

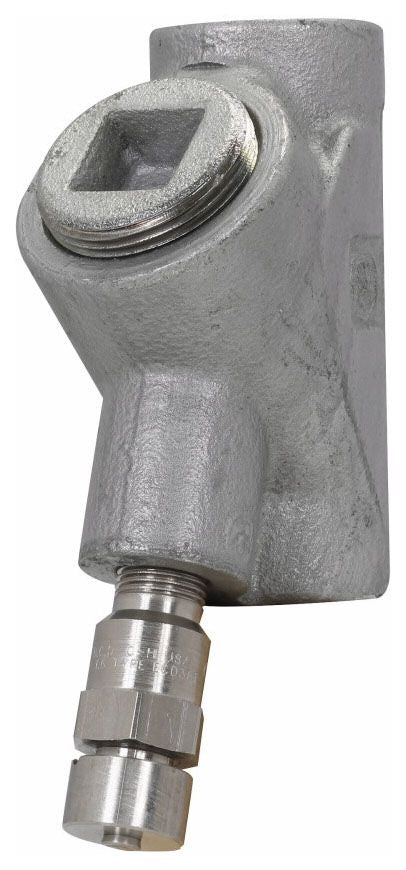

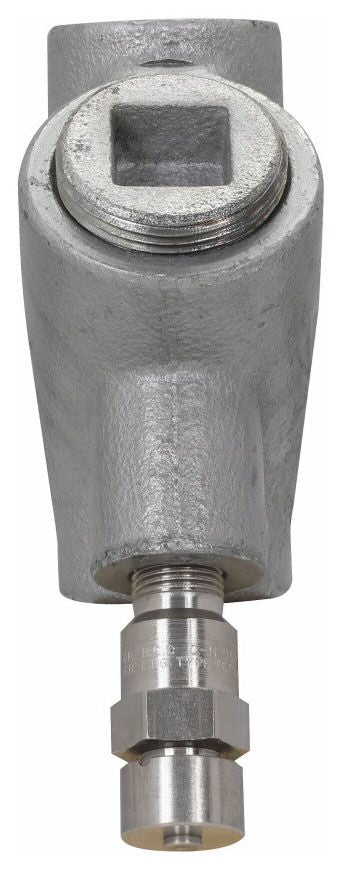

Crouse-Hinds EYDX31 Explosionproof Conduit Expanded Fill Sealing Fitting

EYDX Expanded Fill Drain Sealing Fittings Provide a 40 Percent Wire Fill Capacity for Expanded Fill Sealing; Drain to Provide Continuous, Automatic Drainage of Condensate; Large Openings with Threaded Closures to Provide Easy Access to Conduit Hubs for Making Dams; Integral Bushings to Protect Conductor insulation from Damage; Taper Tapped Hubs to Ensure Ground Continuity; Restrict the Passage of Gases, Vapors or Flames from One Portion of the Electrical installation to Another at Atmospheric Pressure and Normal Ambient Temperatures; Limit Explosions to the Sealed Off Enclosure; Prevent Pre-Compression or "Pressure Piling" in Conduit Systems; Dust-Ignitionproof

Specifications:

Type: Drain, Hub
Turning Radius: 1-27/32 Inch
Trade Size: 1 Inch
Connection Type: Female Threaded
Material: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy/Ductile Iron
Mounting Position: Vertical
Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III
Approval: UL 1203, CSA C22.2
