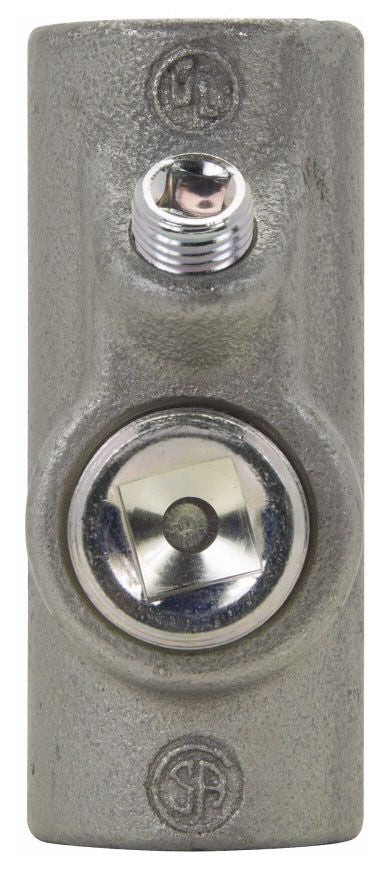

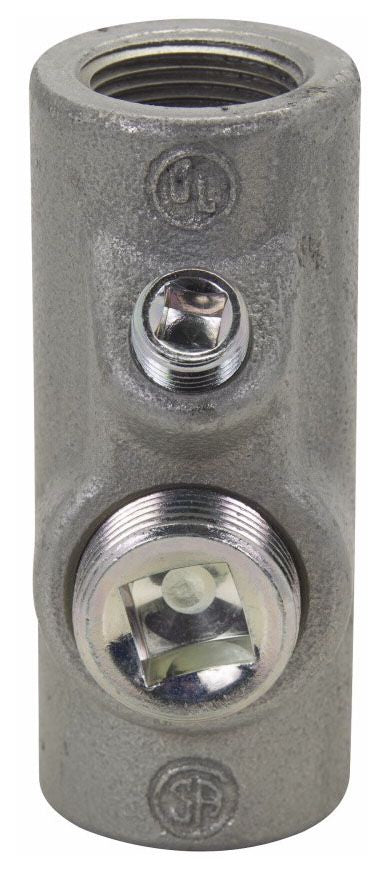

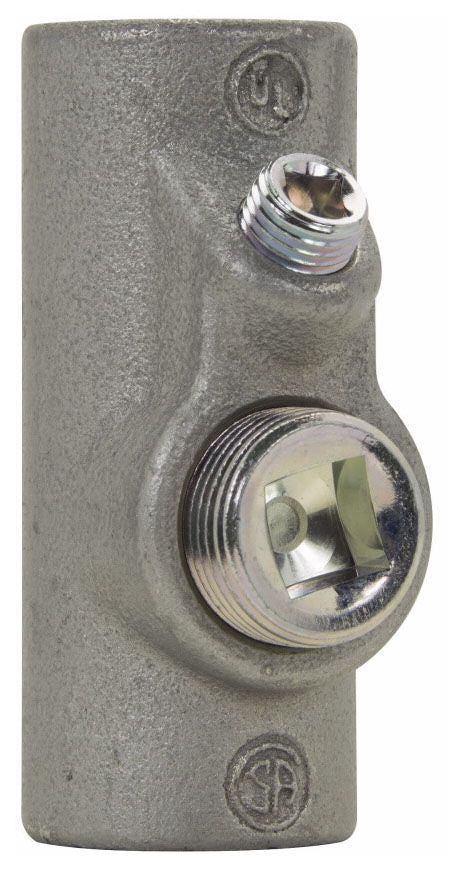

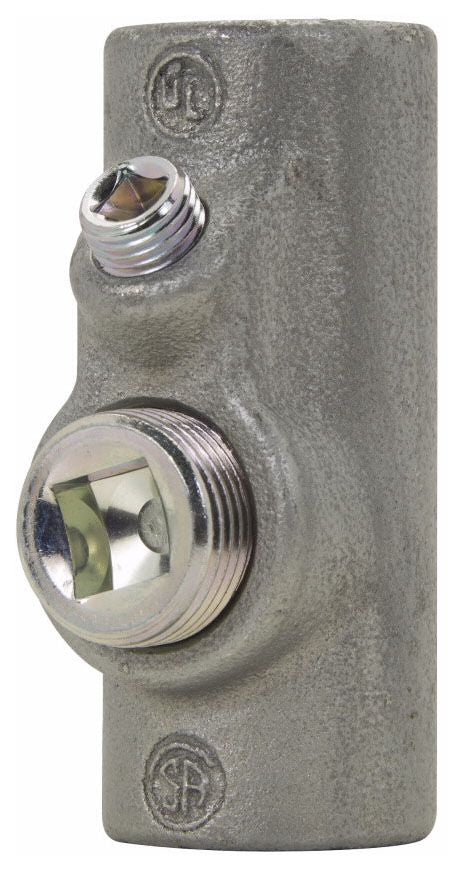

Crouse-Hinds EYS31 Explosionproof Conduit Sealing Fitting

Crouse-Hinds series EYS and EZS explosionproof sealing fittings restrict the passage of gases, vapors or flames from one portion of the electrical installation to another, limit explosions to the sealed off enclosure, and limit pre-compression or "pressure piling" in conduit systems. EYS sealing fittings are available for installation in either vertical only or in both horizontal or vertical positions. They are available in a variety of materials, including Feraloy iron alloy and/or ductile iron, copper-free aluminum and stainless steel.

Specifications:

Type: Hub
Turning Radius: 2-3/8 Inch
Trade Size: 1 Inch
Connection Type: Female Threaded
Material: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy/Ductile Iron
Mounting Position: Vertical/Horizontal
Enclosure: Class I Div 1 and 2 Group A B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III
Approval: UL 1203, CSA C22.2
