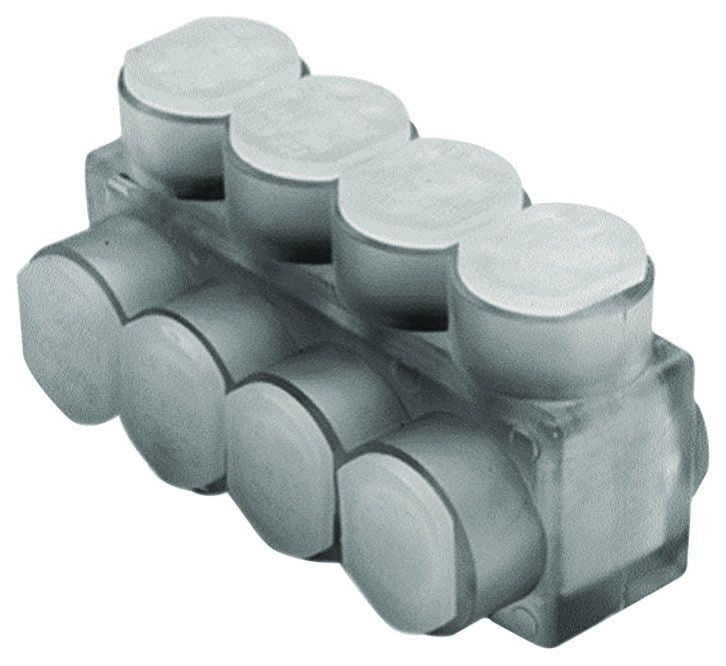

Tap connections and in-line splice/reductions are made quickly and easily with the UNITAP line of clear insulated connectors for code conductor. UL486B Listed. Dual-rated AL9CU for any stranded copper or stranded aluminum applications. 600 Volt, 90° C. Featuring multiple configurations suitable for most any application.

Specifications:

Voltage Rating: 600 V
Number of Ports: 4
Cable Entry: 2 Side Entry
Conductor Material: Aluminum/Copper
Minimum Conductor Size: 8 AWG (Aluminum), 14 AWG Stranded (Copper)
Maximum Conductor Size: 2/0 AWG (Aluminum), 2/0 AWG Stranded (Copper)
Body Material: Aluminum Body, Clear Plastisol Insulated
Approval: UL, CSA
