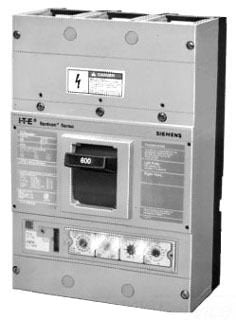

Long, Short Time and Instantaneous Trip Functions; RoHS Compliant

Specifications:

Type: Electronic, Solid State
Frame Type: JD
Voltage Rating: 600 Volt AC
Maximum AC Voltage Rating: 600 Volt
Current Rating: 400 Amp
Number of Poles: 3
Interrupting Rating: 65 Kiloamp at 240 Volt AC (UL 489), 35 Kiloamp at 480 Volt AC (UL 489), 25 Kiloamp at 600 Volt AC (UL 489)
Terminal Type: Line/Load Lug
Size: 7.5 Inch Width x 5.44 Inch Depth x 11 Inch Height
Approval: UL 489, IEC 947-2
