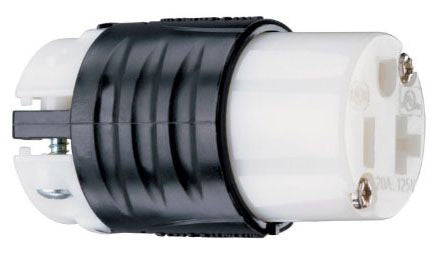

Pass & Seymour PS5369X Straight Blade Connector

In stock - 10 items available
SKU: 23168
Regular price $34.00

Unit Arrives Completely Ready to Wire, Cuts Installation Time Significantly; Nylon Housing Provides Impact and Chemical Resistance; Rugged 2-Piece Cord Grip Provides More Uniform Cord Retention; Internal Dust Shield Keeps Terminals Free of Contaminants; Tri-Drive Assembly Screws are Standard on All Specification Grade Plugs and Connectors; All 3-Wire Terminals Located on the Same Plane, Allows for Quick Wire Termination from any Angle; Heavy Duty Brass Alloy Blades and Contacts, Resist Heat Rise, Provide Excellent Conductivity; Cord-Grip Screws Recessed to Protect Installer Against Screwdriver Head Slippage; RoHS Compliant

Specifications:

Type: Polarized
Constructional Feature: Impact/Chemical Resistant
Configuration: 5-20R
Voltage Rating: 125 Volt AC
Current Rating: 20 Amp
Number of Poles: 2
Number of Wires: 3
Ground Type: Grounding
Color: Black, White
Cord Size: 0.23 to 0.72 Inch
Material: Nylon
Grade: Extra Hard Use, Specification
Approval: UL (Canada and US), CSA
