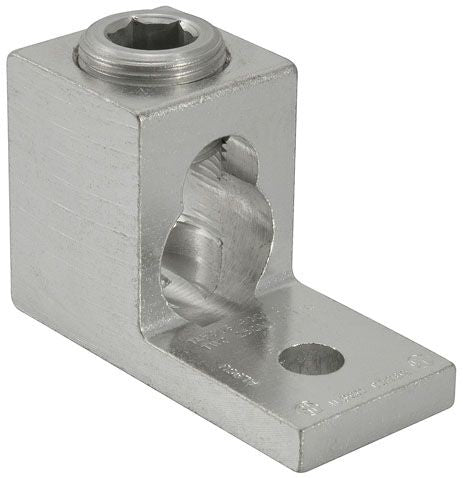

Ilsco TA-800-S Mechanical Lug
Ilsco TA-800-S Mechanical Lug
Ilsco

Ilsco TA-800-S Mechanical Lug

Out of stock
SKU: 231858
$17.16

Visit Our YouTube Channel

Provides Low Contact Resistance; Provides Ease of Installation; Application Versatility; Suitable for Use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; RoHS Compliant

Specifications:

Type: Chamfered Wire Entry
Number of Conductors: 1
Minimum Conductor Size: 3/0 AWG
Maximum Conductor Size: 800 KCMIL
Conductor Material: Aluminum/Copper
Pad Type: Straight
Screw Type: 1/2 Inch Hex
Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
Number of Pad Holes: 1
Pad Size: 1-3/4 Inch L x 1-5/16 Inch W x 1/2 Inch Thk
Stud Size: 5/8 Inch
Overall Length: 3-1/4 Inch
Approval: UL 453G, UL 486A/B, CSA
