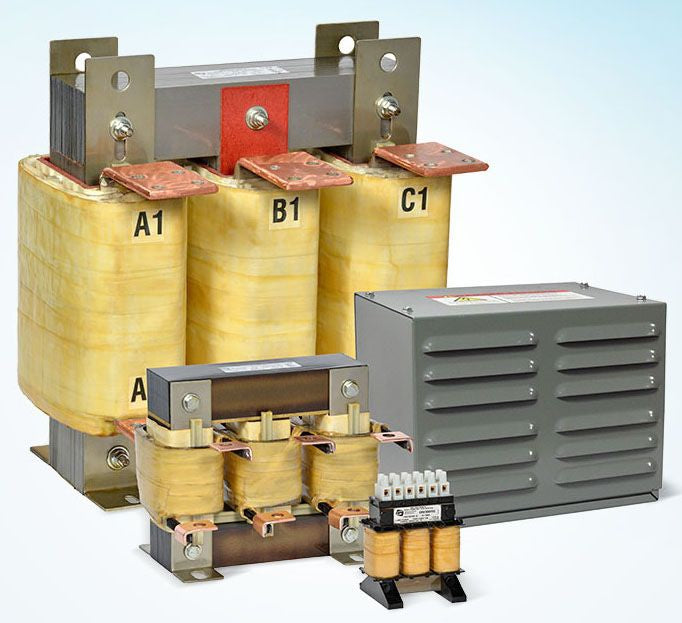

Hammond Power Solutions CRX07D6AC Drive Line Reactor
Regular price
$96.21
Couldn't load pickup availability
The new HPS Centurion R reactor provides a unique blend of improved performance and reliability while reducing the product footprint. HPS Centurion R reactors deliver protection for your motors and drives. The efficient and cost effective HPS Centurion R reactors are built to address both line-side and load-side issues associated with demanding AC drive applications.
Specifications:
Enclosure: NEMA 1, Core and Coil
Voltage Rating: 480 Volt AC at 60 Hertz
Power Rating: 5 HP
Impedance: 3 Percent
Inductance: 3.06 Millihenry
Size: 4.12 Inch Width x 3.51 Inc Depth x 5.13 Inch Height
Used On: HPS Centurion R Reactor
Approval: UL 508, CSA C22.2, CE
