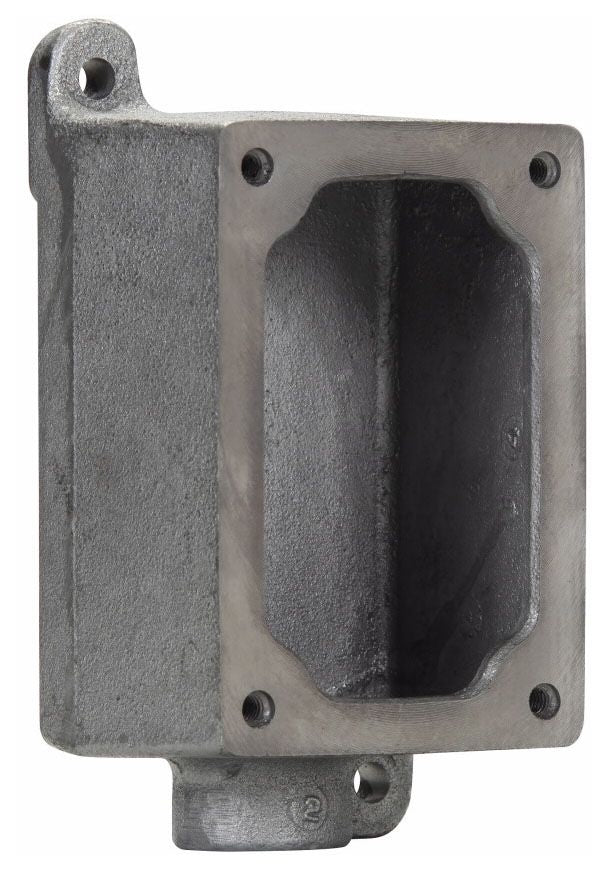

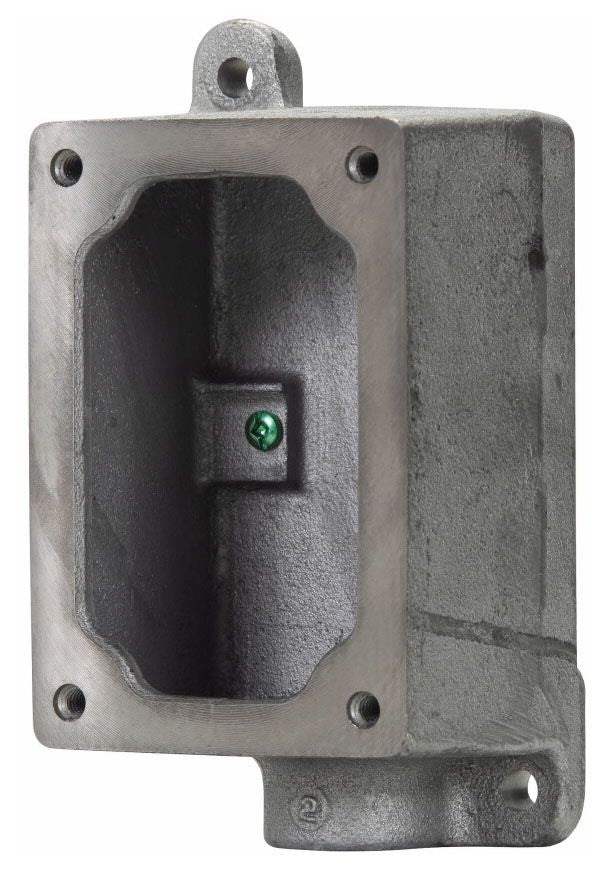

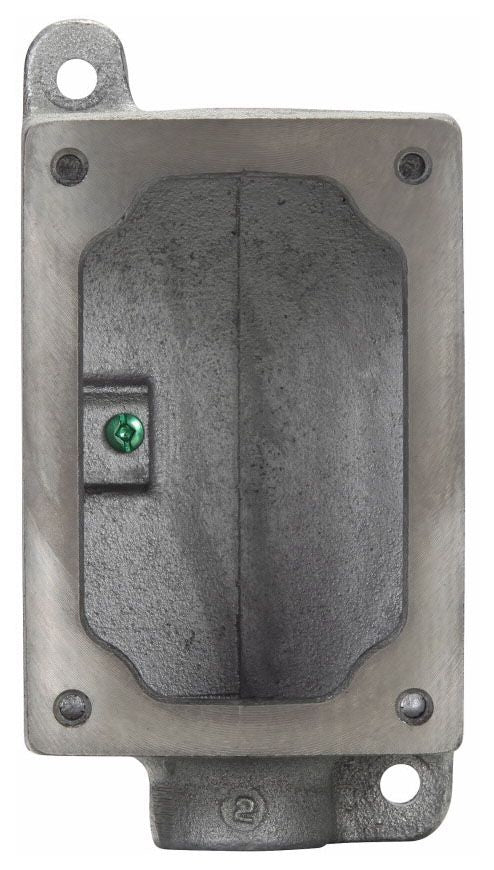

Crouse-Hinds EDS271 Explosionproof Control Station Back Box

Momentary Contact Pushbuttons, Maintained Contact Pushbuttons and Pilots Lights Offer a Choice of Functions; Selector Switches in 2 or 3 Position Configurations including Keyed and Spring Return Options; Rugged Control Devices for Safe, Reliable Operation in industrial Applications; Bodies, with Extra Room for Wire Pulling and Termination, also include Two integral Mounting Feet for Fast, Secure installation; Bodies have 1/2 inch, 3/4 inch, 1 inch Dead-End or Through-Feed Conduit Hubs with integral Bushing for Protection of Wire insulation

Specifications:

Type: Dead End
Number of Gangs: 1
Construction: Deep
Number of Hubs: 1
Hub Size: 3/4 Inch
Material: Electrogalvanized and Aluminum Acrylic Painted Feraloy Iron Alloy
Enclosure: Class I Div 1 and 2 Group C D, Class I Div 2 Group B, Class II Div 1 and 2 Group E F G, Class III Zone 1 and 2 Group IIB, NEMA 3R/7B/7C/7D/9E/9F/9G/12
Size: 3.5 Inch Length x 3.0625 Inch Width x 5.875 Inch Height
Mounting: Feet
Used On: EDS/EFS Series Control Station
Approval: UL 1203
