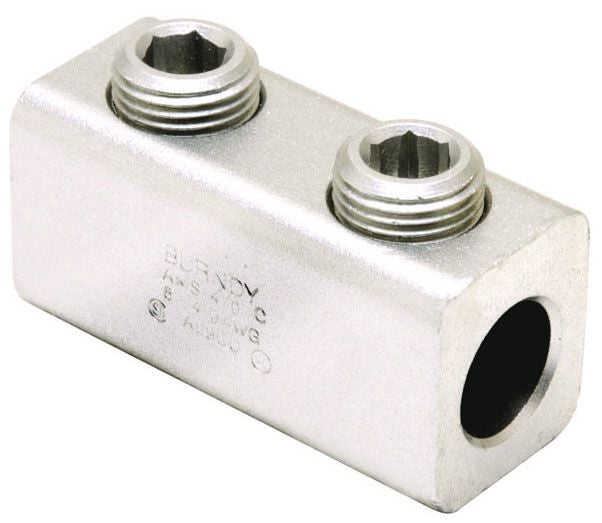

All splicer/reducers are dual rated for use with aluminum and copper conductors and are constructed from high strength, tin plated aluminum. PENETROX oxide inhibiting joint compounds are recommended for all aluminum applications.

Specifications:

Type: In-Line with Barrier
Minimum Conductor Size: 6 AWG (Aluminum), 4 AWG Solid (Copper), 6 AWG Stranded (Copper)
Maximum Conductor Size: 350 KCMIL (Aluminum), 4/0 AWG Solid (Copper), 350 KCMIL Stranded (Copper)
Conductor Material: Aluminum/Copper
Number of Screws: 4
Screw Size: 11/16 Inch Dia
Hex Size: 5/16 Inch
Size: 4.34 Inch L x 1 Inch W x 1.09 Inch H
Body Material: Tin Plated High Strength Aluminum
Insulation Type: Non-Insulated
Approval: UL, CSA
