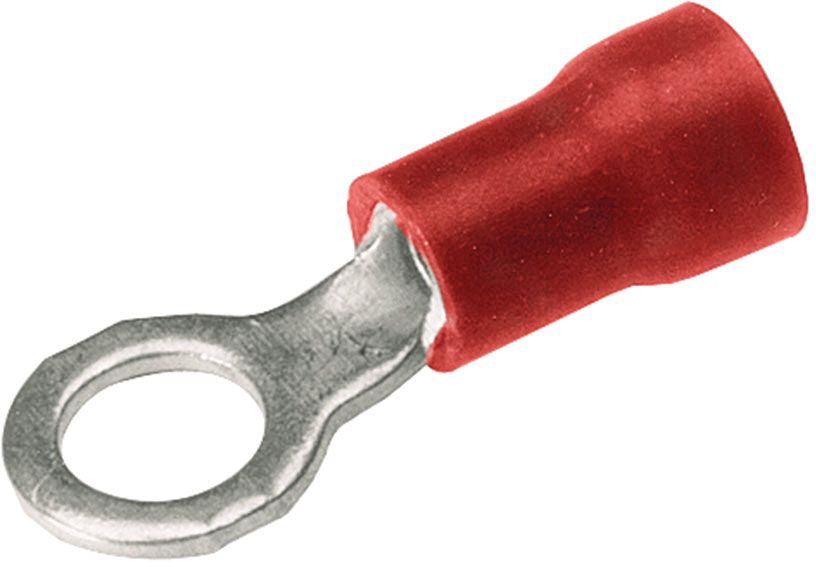

VINYLUG Type TP is designed for commercial and light duty industrial control and power circuit applications. Supplied with an expanded polyvinyl chloride (PVC) insulation shroud, many tongue variations and rated 600V makes TP terminals versatile and economical.

Specifications:

Type: Funnel Entry, Light Duty
Minimum Conductor Size: 22 AWG
Maximum Conductor Size: 16 AWG
Color: Red
Insulation Type: PVC Insulated
Stud Size: #8 to #10
Temperature Rating: 105 Deg C
Approval: UL, CSA
