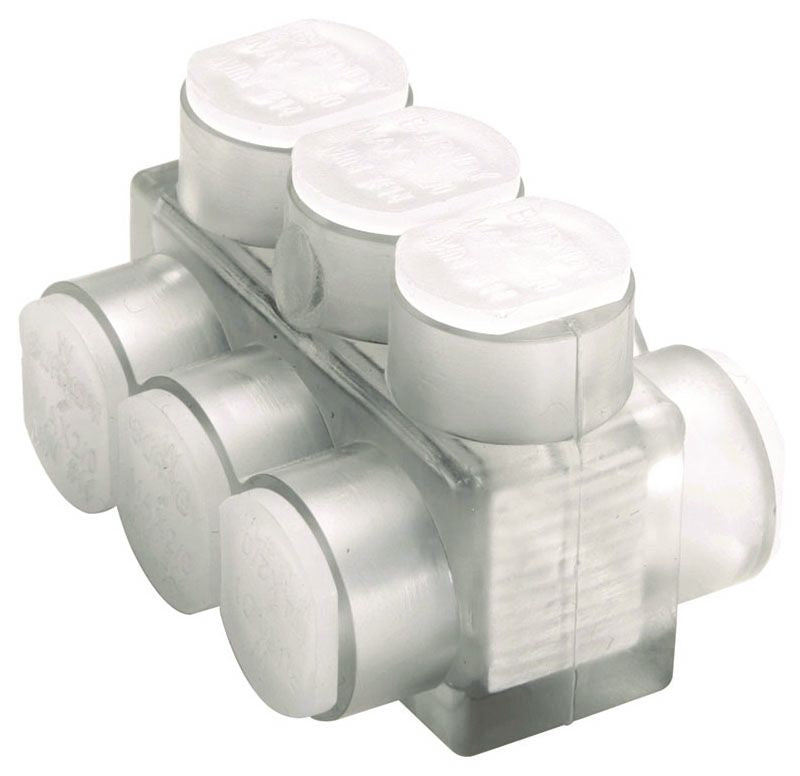

Tap connections and in-line splice/reductions are made quickly and easily with the UNITAP line of clear insulated connectors for code conductor. UL486B Listed. Dual-rated AL9CU for any stranded copper or stranded aluminum applications. 600 Volt, 90° C. Featuring multiple configurations suitable for most any application.

Specifications:

Voltage Rating: 600 V
Number of Ports: 5
Cable Entry: 2 Side Entry
Conductor Material: Aluminum/Copper
Minimum Conductor Size: 8 AWG (Aluminum), 10 AWG Stranded (Copper)
Maximum Conductor Size: 250 KCMIL (Aluminum), 250 KCMIL Stranded (Copper)
Body Material: Clear Plastisol Covered AL6061-T6 Aluminum
Approval: UL 486B, CSA
