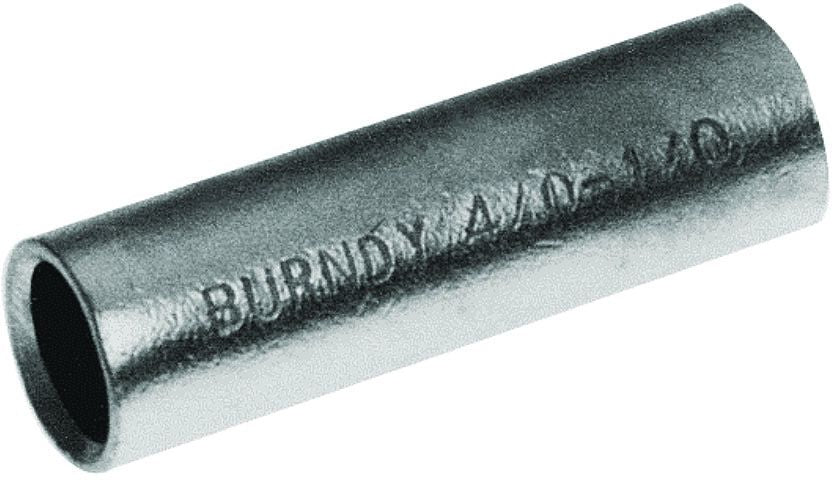

Burndy Y3934R Compression Reducing Adapter

Out of stock
SKU: 232208
Regular price $89.88
OR

Type Y-R reducing adapter has been designed to allow large size, long barrel, copper HYDENT, HYSPLICE, and HYTEE terminals, splices and T-taps to be used on small conductor sizes. To use, simply insert the reducer into the barrel, insert the wire into the reducer adapter and crimp the outer barrel using its recommended tooling.

Specifications:

Type: Reducing Adapter
Voltage Rating: 600 V to 35 KV
Conductor Material: Copper
Side A Conductor Size: 750 KCMIL
Side B Conductor Size: 500 KCMIL
Outer Diameter: 1.02 Inch
Length: 2.88 Inch
Material: High Conductivity Electrolytic Tin Plated Copper
Approval: UL, CSA
